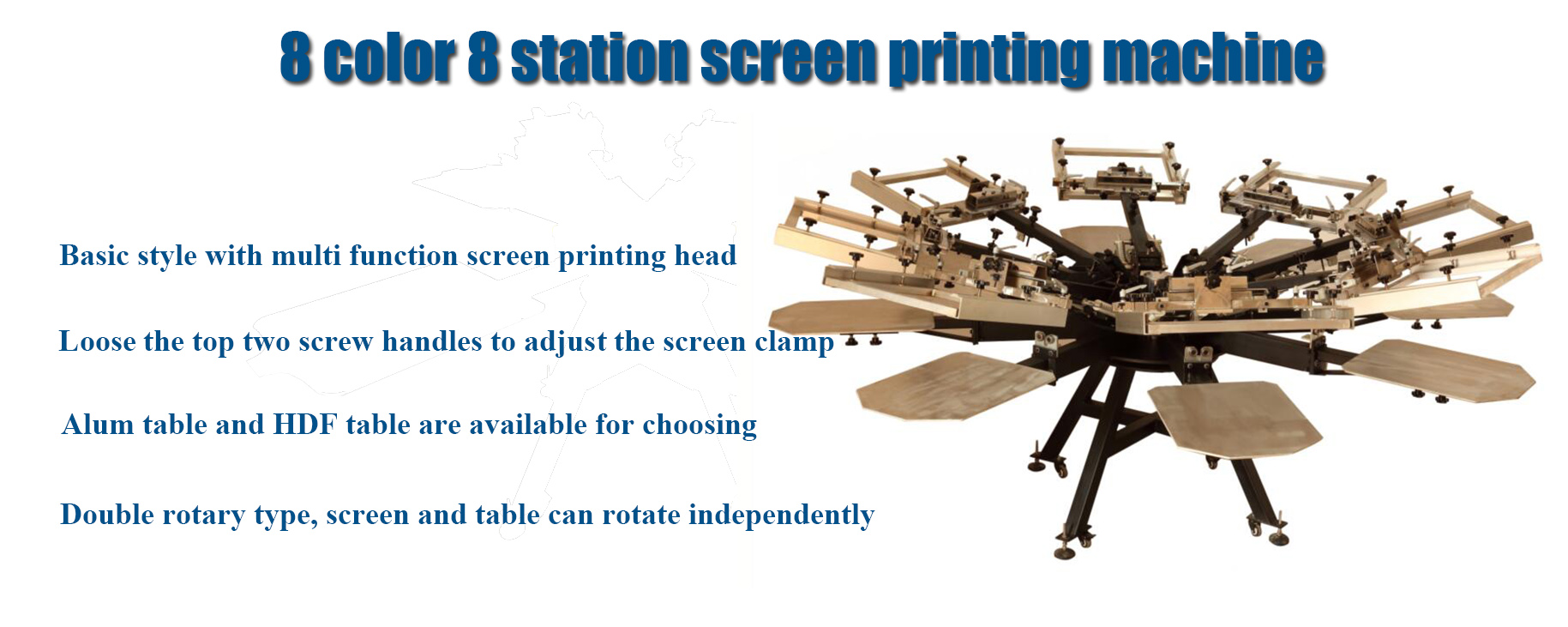

8color 8 station screen printing machine

Short Description:

This machine is suitable for 8 color printing. It is useful with multi-function head. The direction of screens can be adjust easily.



  • model: JM-SP08-SS8
  • Pallet size: 45 x 61cm
  • Pallet Material: Aluminum Pallet
  • Max Frame size: 80x70cm
  • Max Image size: 45x55cm
  • Gross Weight: 528KGS
  • packing size: 161*161*145CM
  • Product Detail

    Product Tags

    Product description

    *This printer is our company basic type with multi function screen printing head

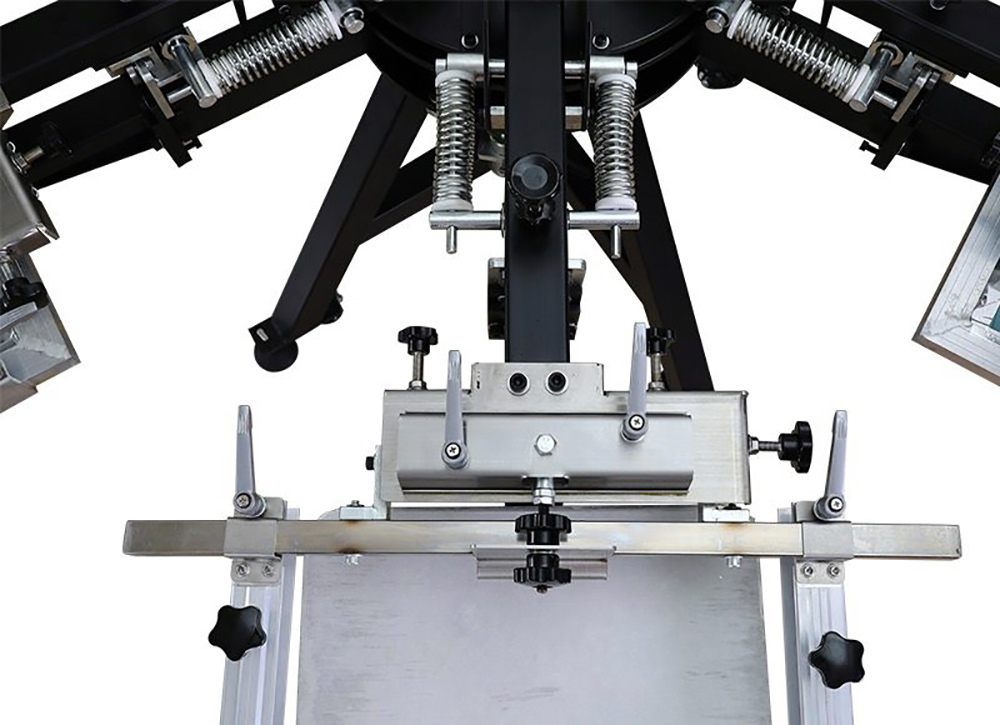

    *Loosen the top two screw handles to adjust the screen clam, move the clamp from right to left, back and front, up-dowm and angles. Don’t need to loose the screen directly.

    *Alum table and HDF table are available for choosing. New style base is more strong and stable.

    *Double rotary type, screen and table can rotate independently, strong base with caster to move freely.

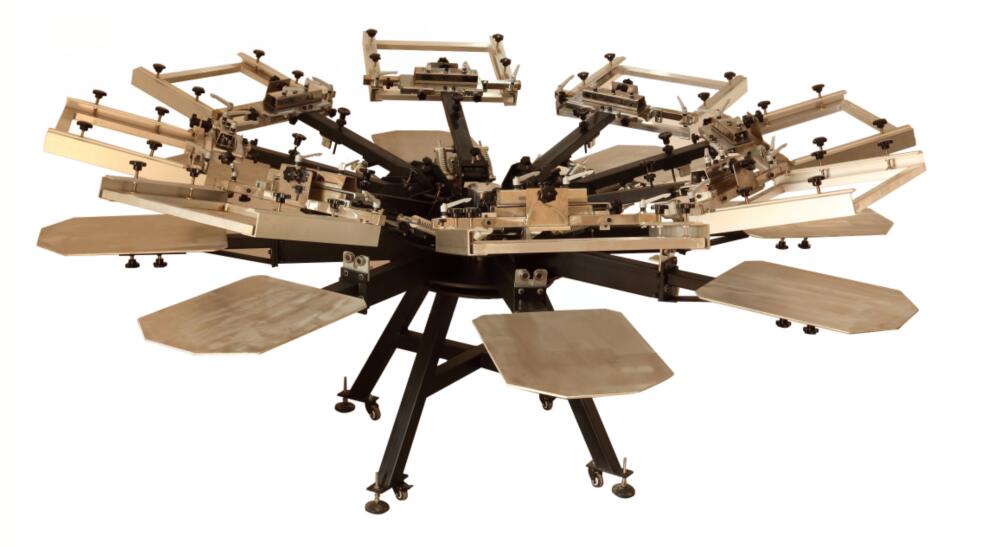

    8-8 best screen printer (4)

    Product Specification



    Pallet size  450×610 mm
    Pallet materials  Aluminum
    Max frames szie

    700×800 mm

    Max printing szie

    450×550 mm

    packing size




    Advantage Multi-functions for differnet objection
    Stainless steel bolts increase using life
    Heavy weight to keep the machine steady in printing time
    Uniform double clamps system to keep the frame stations
    With micro-registration system on left-right/fornt-back angles onhorizontal and vertical

    product detail8


    Product Feature

    -Dourable rotary type, screen and table can rotate independently, strong base with caster
    -Move the clamp right-left,back-forth, up-down and angles, no need to loose the screen directly
    -We have a professional QA & QC team and will fully track the orders from the very beginning to the very end to make sure all our customer get from us will be good.

    Product Application

      1. Widely suitable for screen printing tshirts, garments, towel, lether,umbrella and backpack, etc.

      2. The printing base and screen can be rotated, and screen plate can turn backward and forward, left andright, which makes the operation easier and postitioning more accurate.

      3. Used for printing with heat set ink, rubber cement and other printing inks.

    If you wish to print in multiple colours, then you will require one of our ‘Carousel’ systems. They are called Carousel because the screens and
    All our screen printing machines and spot dryers are proudly hand made in the china. On our carousel screen printing machines, the screens rotate allowing you to select the next colour and so on. On the larger machines (eg. 4, 6 and 8 colour floor standing machines), the print beds also rotate independently of the screens. This is important because as your print one colour, you need to rotate the t-shirt (whilst still on the board) underneath the spot dryer to cure the ink before you apply the next colour on top.

    Our carousel machines pack many features only often found on much more expensive machines. For example, they have micro adjustments allowing you to fine tune the settings and to make sure that others colours align up correctly.  Also, the screen holder is adjustable allowing you to micro adjust the screen settings and even making allowances for any warped screen frames (this can happened to wooden frames the more you clean and wash them. This is not an issue with aluminium frames).

    Strong arm tension springs, high quality bearings and all metal mechanism makes our screen printing machines .


    Minimun Order Ququtity: 1 set/sets
    Port: Shenzhen, Guamgzhou,Tianjin
    Packing Details:  1 strong plywood box
    Delivery Time: Seven days
    Paymnt Terms: T-T,Western Union,Escrow,Paypal.
    Supply Ability: 100set/sets per mouth
