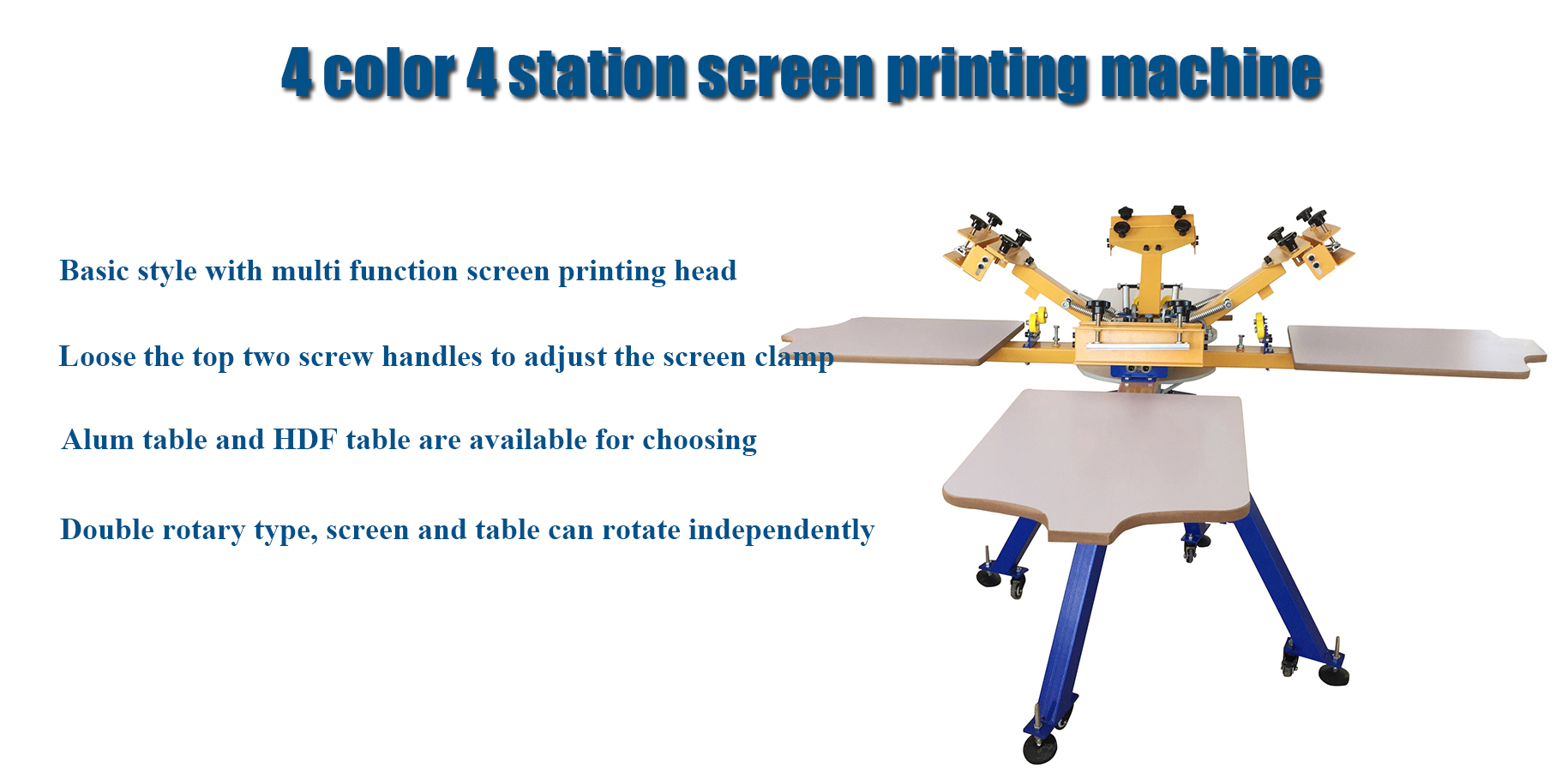

This printer is our company basic type with multi function screen printing head
Loosen the top two screw handles to adjust the screen clam, move the clamp from right to left, back and front, up-dowm and angles. Don’t need to loose the screen directly.
Alum table and HDF table are available for choosing. New style base is more strong and stable.

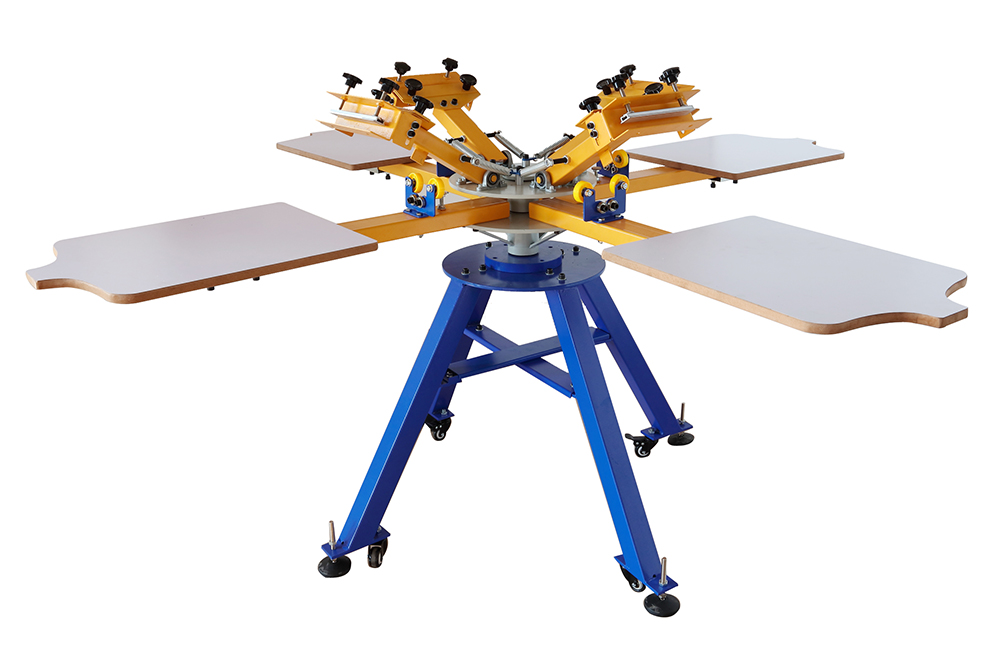

Double rotary type, screen and table can rotate independently, strong base with caster to move freely. Product specification
|Max frames szie||500×700 mm|
|Max printing szie||400×500 mm|
Basic style with multi function screen printing head
-Dourable rotary type, screen and table can rotate independently, strong base with caster
-Move the clamp right-left,back-forth, up-down and angles, no need to loose the screen directly
-We have a professional QA & QC team and will fully track the orders from the very beginning to the very end to make sure all our customer get from us will be good.
It could adjust your screen mesh frame on an accurate position with our Easy Adjusting System, it could move up-down, back-forth,left-right and horizontal angles which allow customer to print high fined image.
Detachable T-shirt boards.there are HDF Tshirt board and aluminium t-shirt board optional.
The machine have 4 casters on the feet to help if any movement required.

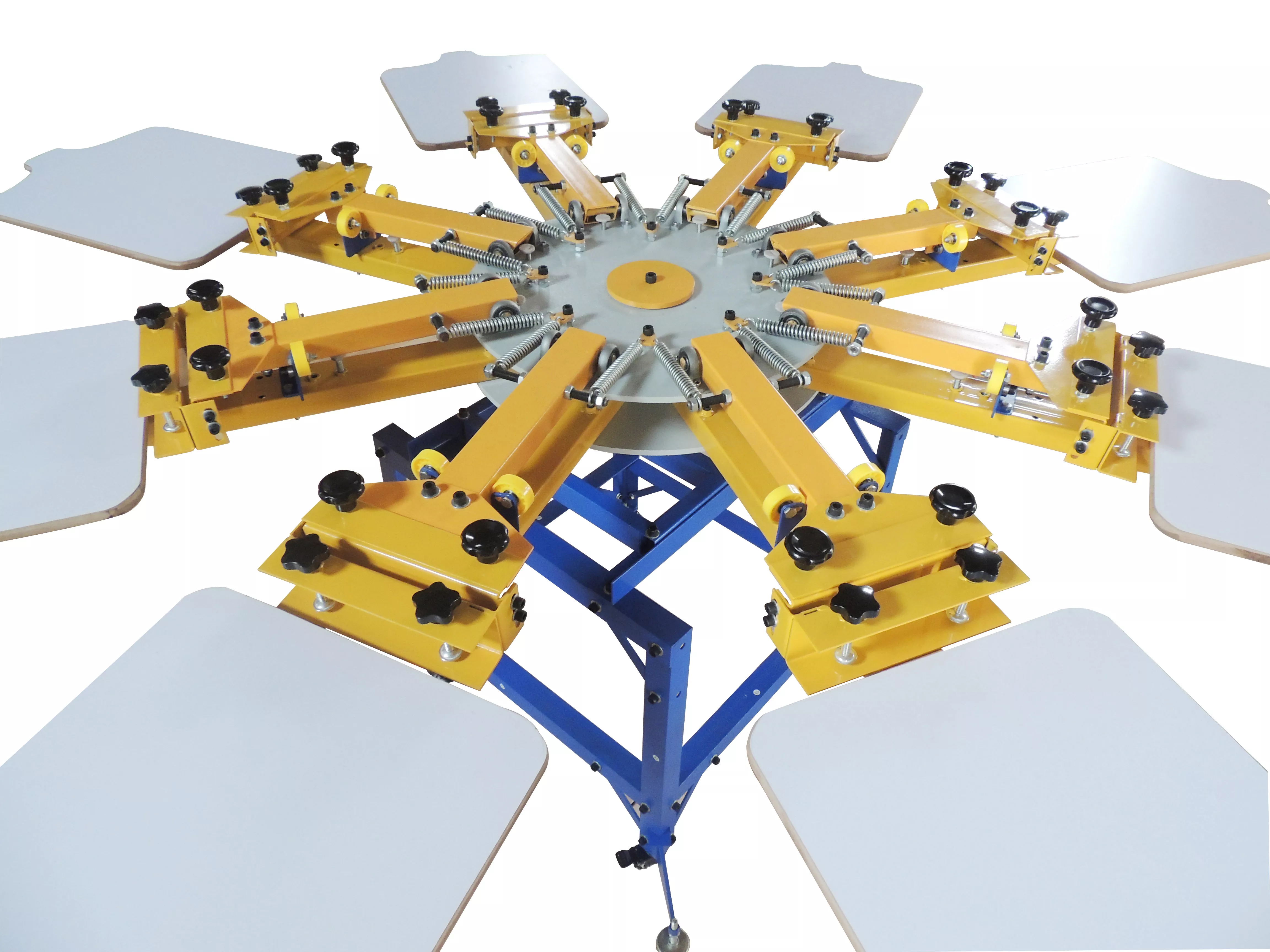

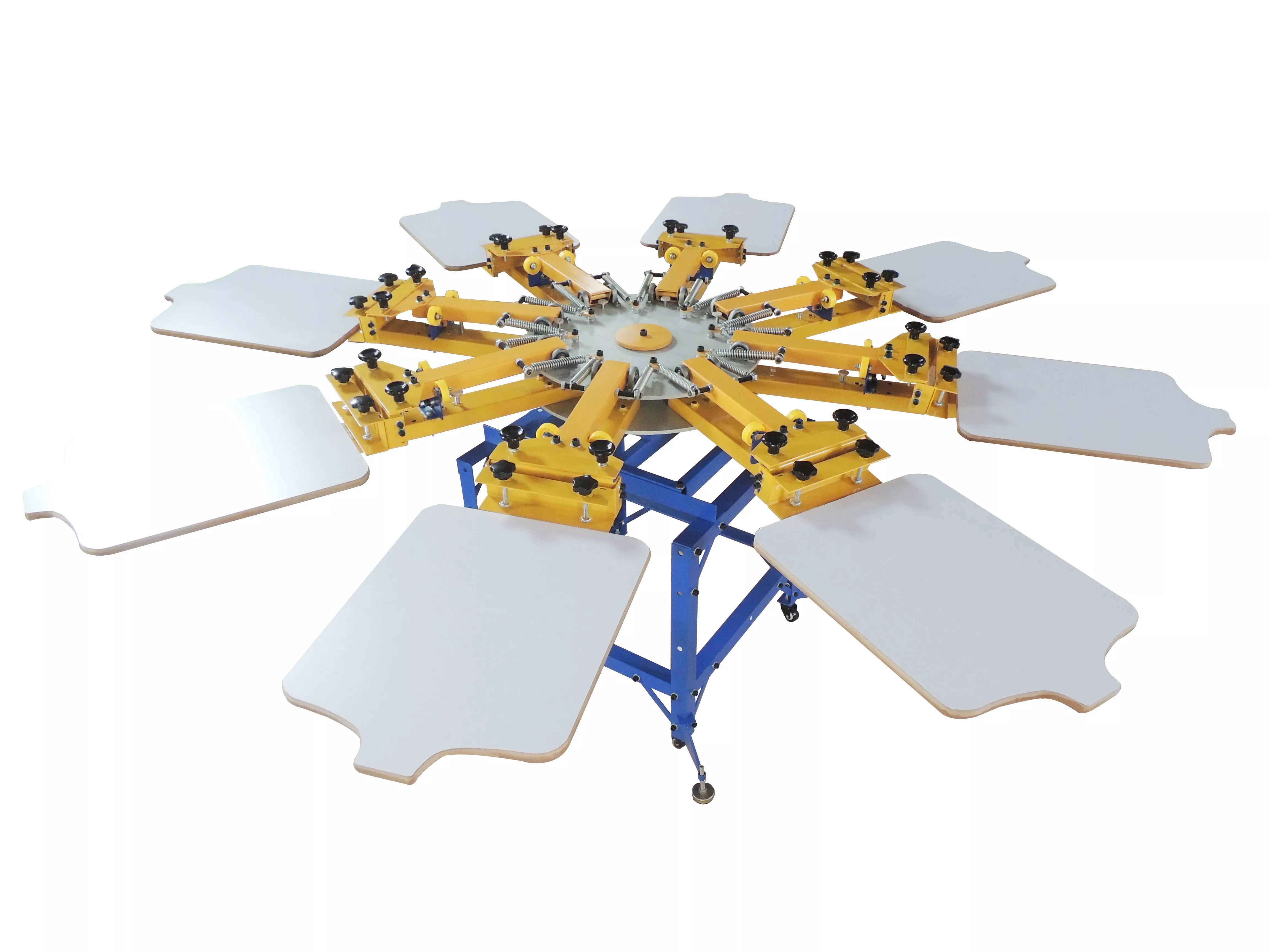

Shirtboard and screen mesh can be rotated independently then you can printing the 8 COLOR image on the clothes at one go.
1. Widely suitable for screen printing tshirts, garments, towel, lether,umbrella and backpack, etc.
2. The printing base and screen can be rotated, and screen plate can turn backward and forward, left andright, which makes the operation easier and postitioning more accurate.
3. Used for printing with heat set ink, rubber cement and other printing inks.
If you wish to print in multiple colours, then you will require one of our ‘Carousel’ systems. They are called Carousel because the screens and
All our screen printing machines and spot dryers are proudly hand made in the china. On our carousel screen printing machines, the screens rotate allowing you to select the next colour and so on. On the larger machines (eg. 4, 6 and 8 colour floor standing machines), the print beds also rotate independently of the screens. This is important because as your print one colour, you need to rotate the t-shirt (whilst still on the board) underneath the spot dryer to cure the ink before you apply the next colour on top.
Our carousel machines pack many features only often found on much more expensive machines. For example, they have micro adjustments allowing you to fine tune the settings and to make sure that others colours align up correctly. Also, the screen holder is adjustable allowing you to micro adjust the screen settings and even making allowances for any warped screen frames (this can happened to wooden frames the more you clean and wash them. This is not an issue with aluminium frames).

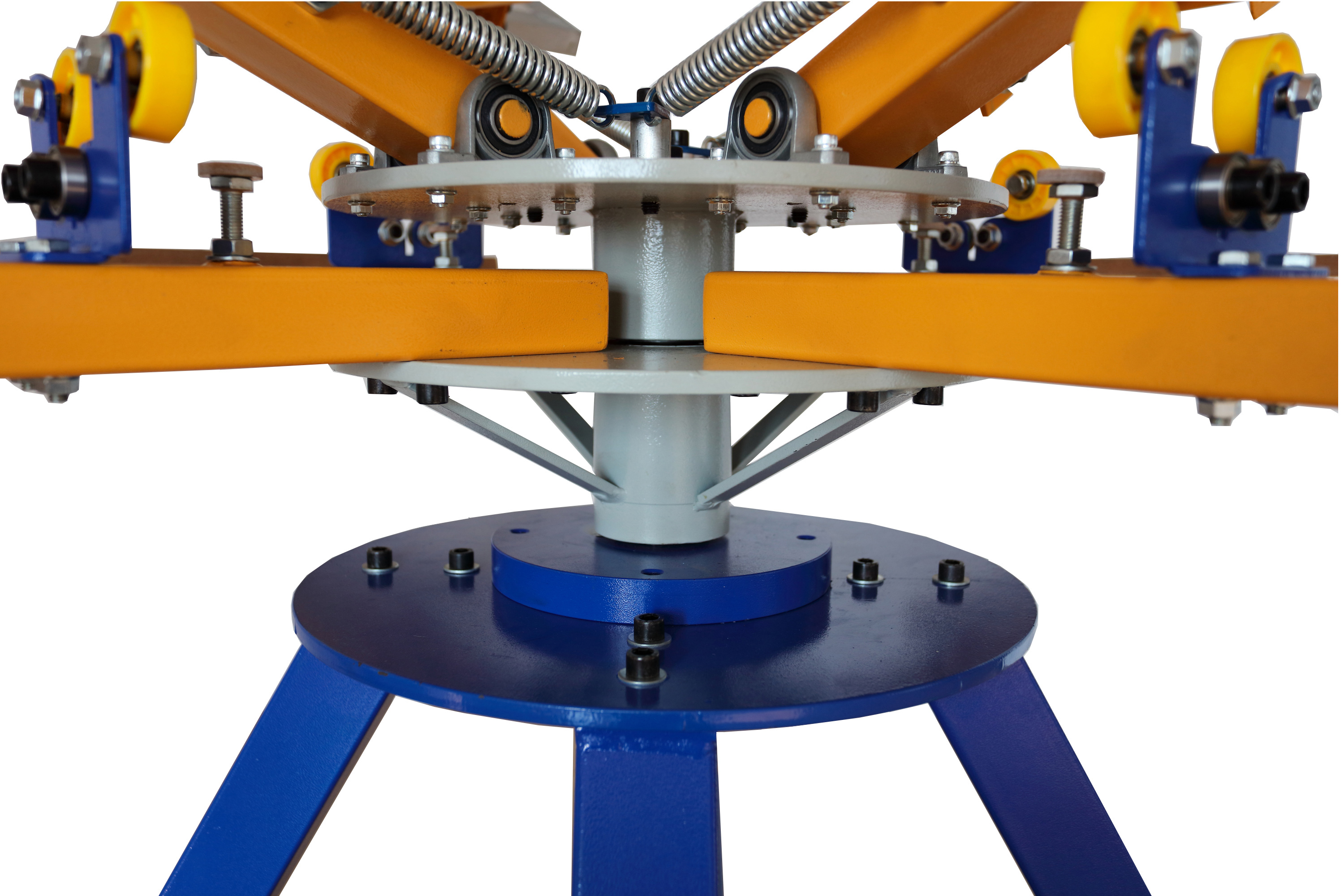

Strong arm tension springs, high quality bearings and all metal mechanism makes our screen printing machines .
