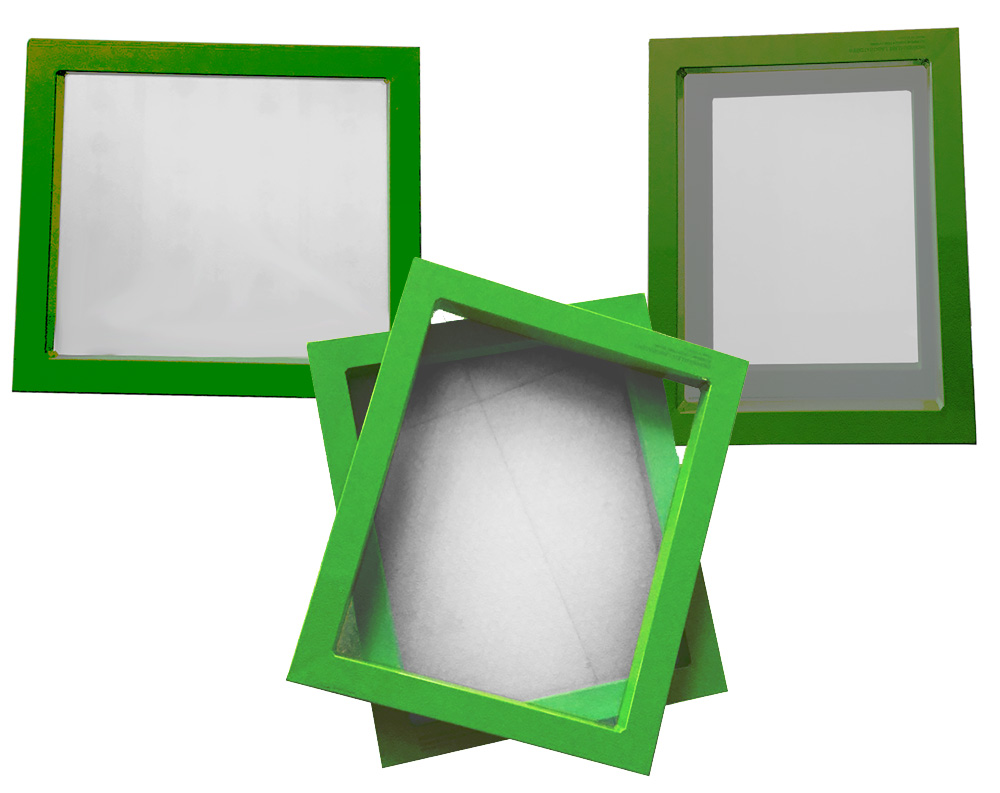

Aluminum screen printing frame-Green paint spraying

Short Description:

Painting screen frame is painted on the basis of common screen frame, which is more corrosion-resistant and beautiful


  • model number: JM-01MG
  • material: aluminum
  • color: green
  • mesh: yellow or white mesh
  • Frame O.D.: 10”x14”12”x16” 18”x20”20”x24”23”x31” 25”x36”
  • Glue: KIWO
  • Product Detail

    Product Tags

    Product Description8

    Product Feature

    Our Aluminum Screen 23″ x 31″ with 110 White Mesh is made, welded,

    and stretched out to a perfect tension with the right Newton dimension ensuring a reliable and durable life.

     Frame O.D. : 23″x31″

     Frame I.D. : 20“x28″

    ● Tube Size:  1-1/2″ Square Aluminum Tubing

    ● Mesh Count: 130 tpi (thread per inch)

    ● Mesh Color: White

    ● Tension:    25N/cmd5b33eddSpecification About Aluminum Frame

    Popular Specification of Aluminum Frame

    Aluminum Profile         Frame Outside Dimension (O.D)
    20*30   10”x14”
    25*25  12”x16”
    30*30  18”x20”
    35*35  20”x24”
    38*38    23”x31”
     40*40   25”x36”

    Additional Available Mesh Counts

    83 / 100 White            110 / 80 Yellow



    110 / 80 White            156 / 64 Yellow



    123 / 70 White           180 / 55 Yellow



    137 / 64 White            195 / 55 Yellow



    156 / 64 White            230 / 48 Yellow



    180 / 55 White           255 / 40 Yellow



    280 / 40 Yellow



    305 / 34 Yellow



    355 / 34 Yellow

    Our Advantages

    Features:                                                                 Benefits:

    ● Lightweight and durable                                       ● Improve printing consistency

    ● Uniform screen tension                                         ● Increase printing speeds

    ● Kiwo glue imported form Germany                     ● Minimize off-contact adjustments

    ● Mesh counts from 24 to 420                                 ● Clean with ease

    ● Customized sizes are available                             ● Better looking prints
