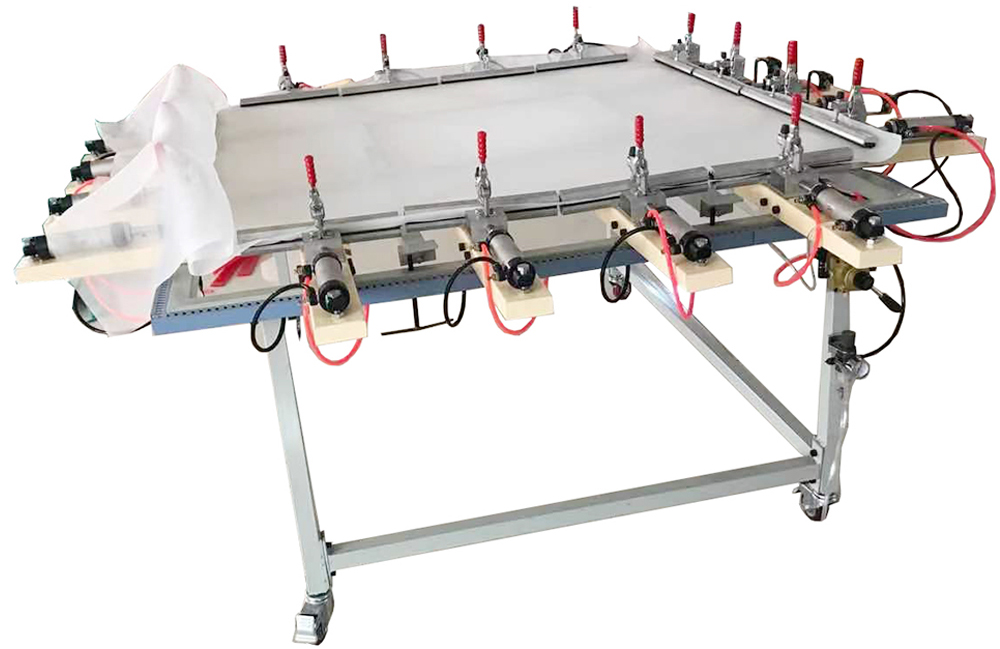

Simple pneumatic stretcher machine

Short Description:

JM-ST-NP1212 type Simple pneumatic stretcher machine

Manual net clamping, pneumatic net pulling, convenient and fast manufacturing

  • Mold: JM-ST-NP1212
  • Max stretching size: 120 x 120 cm
  • Advice max tension: 20N - 30N
  • Clamps size: 30 x 50 cm
  • Clamps type: Single
  • Clamps quantity: 4 x 4 pcs
  • Accessories: Air switch,barometer,air line(All includes)
  • stretch type: Pneumatic
  • clamp type: Manual
  • Outside size: 203 x 203 x 78 cm
  • Packing size: 167 x 167 x 43 cm
  • Weight: 165 kgs
  • Product Detail

    Product Tags

    Simple pneumatic stretcher machine
    customized size
    provide sample
    Pneumatic Drawnet
    Delivery date
    7~15 days
    Provide installation video
    Simple pneumatic stretcher machine
    It is a very easy-to-use and simple net drawing machine to carry out pneumatic net drawing through pneumatic net drawing head

    Pneumatic clamps head specification

    Pneumatic clamps head specification is used to pull the gauze to stretch the net, which saves time and effort
    The specific parameters are as follows
    Pneumatic switch
    The air pressure gauge and the switch can start the pneumatic net pulling head to carry out the net pulling activity by opening the switch
    Pneumatic clamps head specification
    air cylinder capacity and Diameter
    45∮x 75 /L
    Clamps length
    Air cylinder walking distance
    75-100 mm
    Working air press
    Max stretching tension
    Net weight
