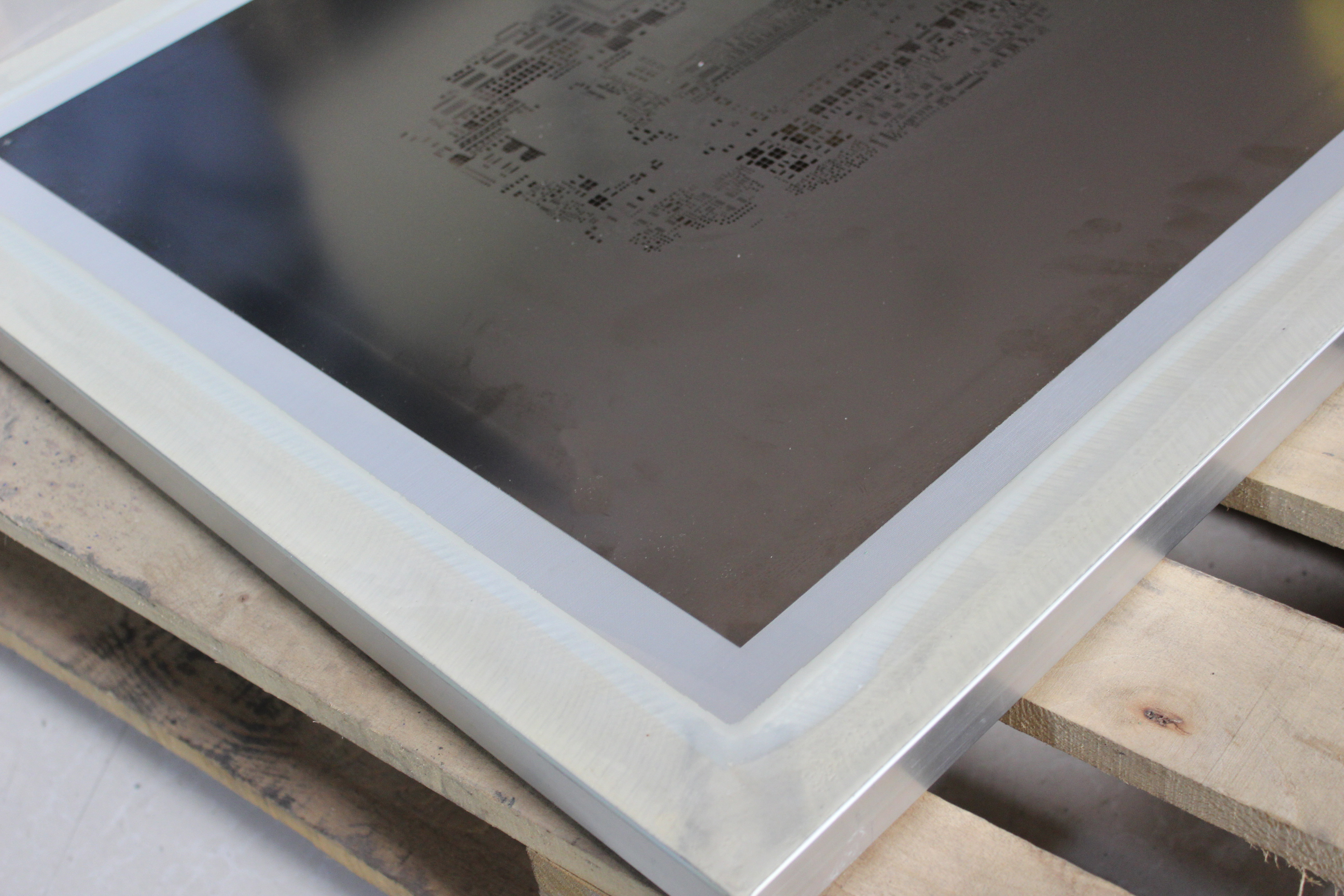

SMT screen printing frame

Short Description:

SMT screen frame is applied to the first part of PCB patch, and the solder paste is not printed on the PCB pad through screen printing technology, so as to prepare for the welding of components. The quality of SMT screen frame is very important for the PCB patch


  • Model number: JM-01SMT
  • frame material: aluminum
  • Thin material: Stainless steel
  • mesh material: Polyester
  • mesh count: 32T
  • tension: 50N
  • glue: AB epoxy glue
  • Product Detail

    Product Tags

    PRODUCT  DISPLAY

    Surface Mount Technology (SMT) for electronic circuit.This is called surface mount or surface mount technique.A frame is a frame used to support a steel mesh (SMT formwork), made of metal, wood, or other materials.It is divided into fixed type and adjustable type.The most commonly used is the aluminum production of pneumatic mesh frame.Simply put, a thin piece of steel is cut with some holes corresponding to the solder joints of the PCB board for printing solder paste.

    10



    product specification

    Size Aluminum profile
    736x550mm 30x40x2.0mm
    650x550mm 30x40x2.0mm
    600x550mm 30x40x2.0mm
    15×20″
    25x38x1.6mm
    23×23″ 12.7×38.1×2.5mm
    25x38x1.6mm
    38x38x2.0mm
    29×29″ 12.7×38.1×2.5mm
    38x38x2.0mm
    40x40x2.0mm
    Frame size SS Sheet thickness SS sheet size
    736x550mm
    650x550mm
    600x550mm
    15×20″
    23×23″
    29×29″
    0.08mm
    651x420mm
    470x420mm
    520x420mm
    10×15”
    18×18”
    18×18”
    18×18”
    24×24”
    24×24”
    24×24”
    0.09mm
    0.10mm
    0.11mm
    0.12mm
    0.13mm
    0.15mm
    0.20mm
    0.25mm
    0.30m

     product details

    The tension is generally between 43 and 45, ensuring the steel plate level

    The four angles and the median error is less than 3N

    11 12

    product feature

     1.Use AB epoxy adhesive to resist corrosion and solvent

    2.The use of aluminum frame, light and high strength

    3.Precise data control in production, to ensure that each product can give customers the best experience in the application

    4.Professional parameters of the mesh yarn, to ensure the elasticity of the product, tensile
