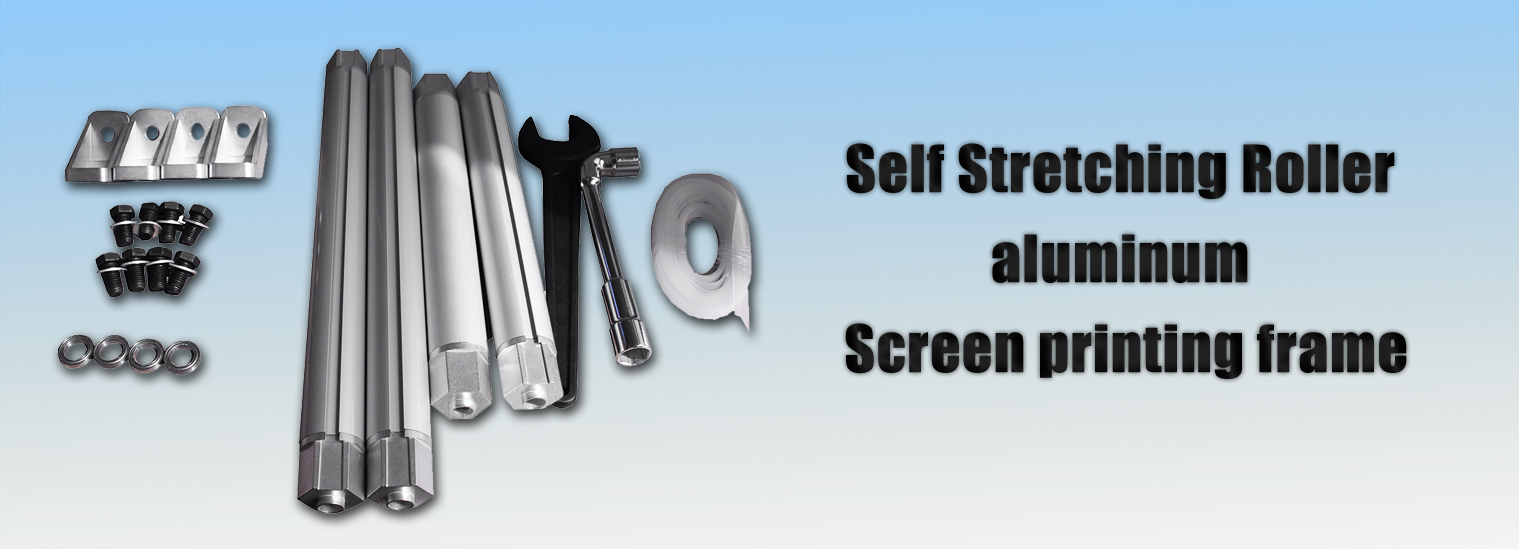

Self Stretching Roller aluminum Screen printing frame

Short Description:

With over 30 years of proven technology, the Self Stretching Roller Frame surpasses any other frame system on the market today. The Self Stretching Roller Frame goes further than meeting rigidity and stability requirements, actually strengthening the characteristics of the mesh with each retensioning between print runs, and after reclaiming. Greater than expected improvements occur from the exclusive use of high-tension screens in both print quality and printing efficiency. Self Stretching Roller Frames help printers maintain quality, productivity, and control.


  • Model number: JM01SH
  • Roller frame Size: 18"x22" ,20'x24' ,23'x31',25'x36' etc
  • Diameter: 41MM
  • Thickness: 1.5MM
  • Color: Silver aluminum screen frames
  • Application: T shirt/textile/glass/ceramic/PCB Electronics printing,etc.
  • Product Detail

    Product Tags

    Product Description

    With over 30 years of proven technology, the Self Stretching Roller Frame surpasses any other frame system on the market today. The Self Stretching Roller Frame goes further than meeting rigidity and stability requirements, actually strengthening the characteristics of the mesh with each retensioning between print runs, and after reclaiming. Greater than expected improvements occur from the exclusive use of high-tension screens in both print quality and printing efficiency. Self Stretching Roller Frames help printers maintain quality, productivity, and control.
    Specification
    Model Number:JM01SH
    Roller frame Size
    Diameter
    Thickness
    Mesh Tensile strength
    Material
    18″x22″
    20′x24′
    23′x31′
    25′x36′
    20x30cm
    30x40cm
    50x60cm
    60x70cm
    50x70cm 100x100cm 120x120cm
    120x150cm
    41MM
    1.5MM
    25N/cm-85N/cm
    aluminum
    How To Use
    1.Rotate each roller so that the outside of the t-slot (closest to you) is aligned with the second mark on the “inside” top of corner surface.Secure both bolts of one roller before proceeding to its opposite roller, locking down each bolt using a torque wrench.
    2.Preparing the mesh: Cut the edge of the mesh and rip the remaining way across. This assures that the mesh is torn on a single thread and that it is straight. Do the same for one of the adjacent sides of the mesh.
    3.Insert the locking strip into the T-slot
    4. Softening the corners: Before tensioning, be sure to pre-soften the corners! This will prevent the mesh from tearing during the stretching process.
    5. Tensioning the Mesh: Begin with either of the short rollers,Use the torque wrench to loosen each bolt of this roller two turns.
    6. flatten the frame,Using a tensiometer

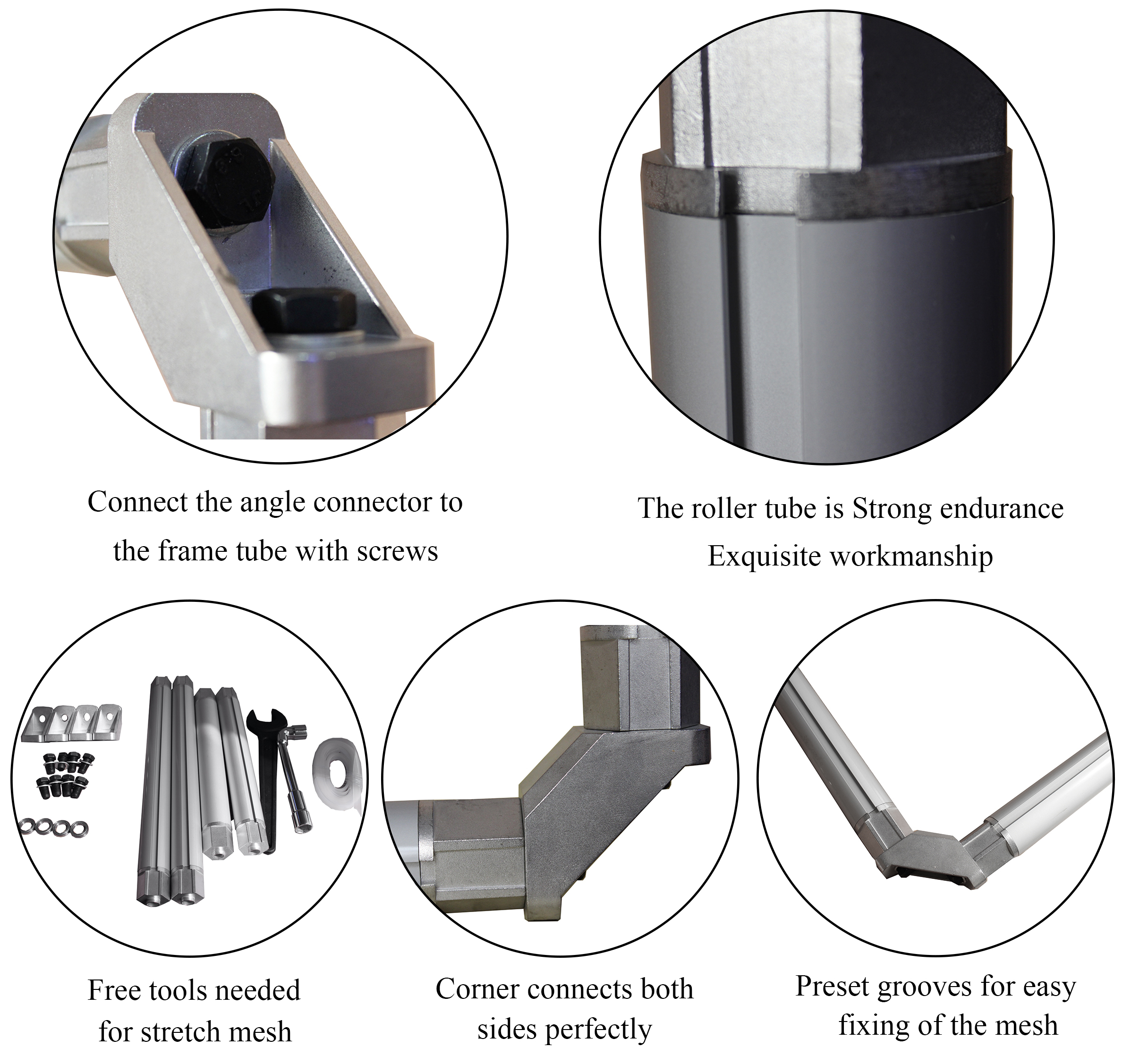

    Details
    Application
    Product feature: 1.Light weight frame for quick and easy handling. 2.Humanized design, greatly improving production efficiency 3.Easy clean up and long lasting durability 4.Corners are carefully welded to provide leak free frames Product application: 1). apply to textile screen printing industry 2). apply to large advertisement industry 3). apply to auto-printing machine 4). apply to Christmas card and invitation card printing 5).apply to high precise LCD, CD,high precise multi-layered circuit board and electronic printing ect.
