Stretching machine-H type (Excellet quality)

Short Description:

Screen stretching is the most important procedure to make screen. Stretching tool and technical define the quality of emulsion coating ,screen stretching and screen printing.

  • Model Number: JM-ST-3
  • Plate Type: Screen Printer
  • Hs code: 8442302900
  • Application: All kinds of screen printing
  • Product Detail

    Product Tags


      Model JM-ST-H90120 Model JM-ST-H120150
    Hs code 8442302900 8442302900
    Max Stretcher Max 900*120 mm 120cm*150cm
    Min stretcher size 60*60 mm
    Max. Tension ≥ 45N/CN ≥ 45N/CN
    Working air pressure >0.8MPA >0.8MPA
    Machine shape size 1200× 1550× 1000mm(L× W× H) 1350× 1550× 1000mm(L× W× H)
    Weight 230kg 250kg
    Packing size 155X50X40CM 175X50X40CM

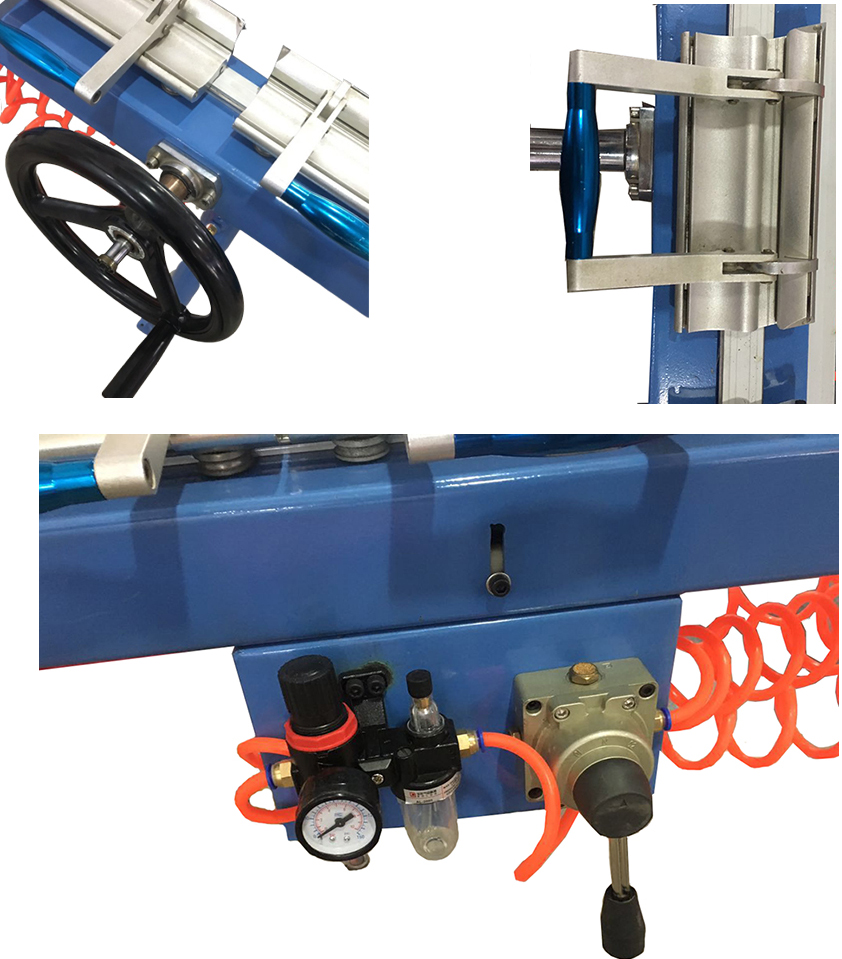

    -Designed by aluminum alloy crossbeam, more light and strong, Easy Frame Size Adjustment

    -Double aluminum clamps keep the stable and higher tension

    -Push the screen by pneumatic to easy stretching mesh

    -Corner Softening Capabilities While Under Tension

    -Compatible with Essentially all Frame Types

    -Stretches Directly from the Bolt of Fabric

    -Utilizes a Wide Locking Bar for Easy Use

    -No Special Training or Tools Required

    -Maintenance-free Design Color and size can be customized




    1. Put the screen frame on it, the upside must be the ragged face.

    2. Adjust the height of the frame, 0.04″-0.08″(1-2mm) higher than the baffle.

    3. Keeping the hand-wheel in the inside of the screw rod will assure better stretching effects.

    4. Coat screen adhesive, not to thin and not to thick.

    5. Stretch when the adhesive sticks hand a bit.

    6. Coat the adhesive again after well stretched.

    7. When the adhesive solidifies completely, then the screen stretching appliance can be dismantled
