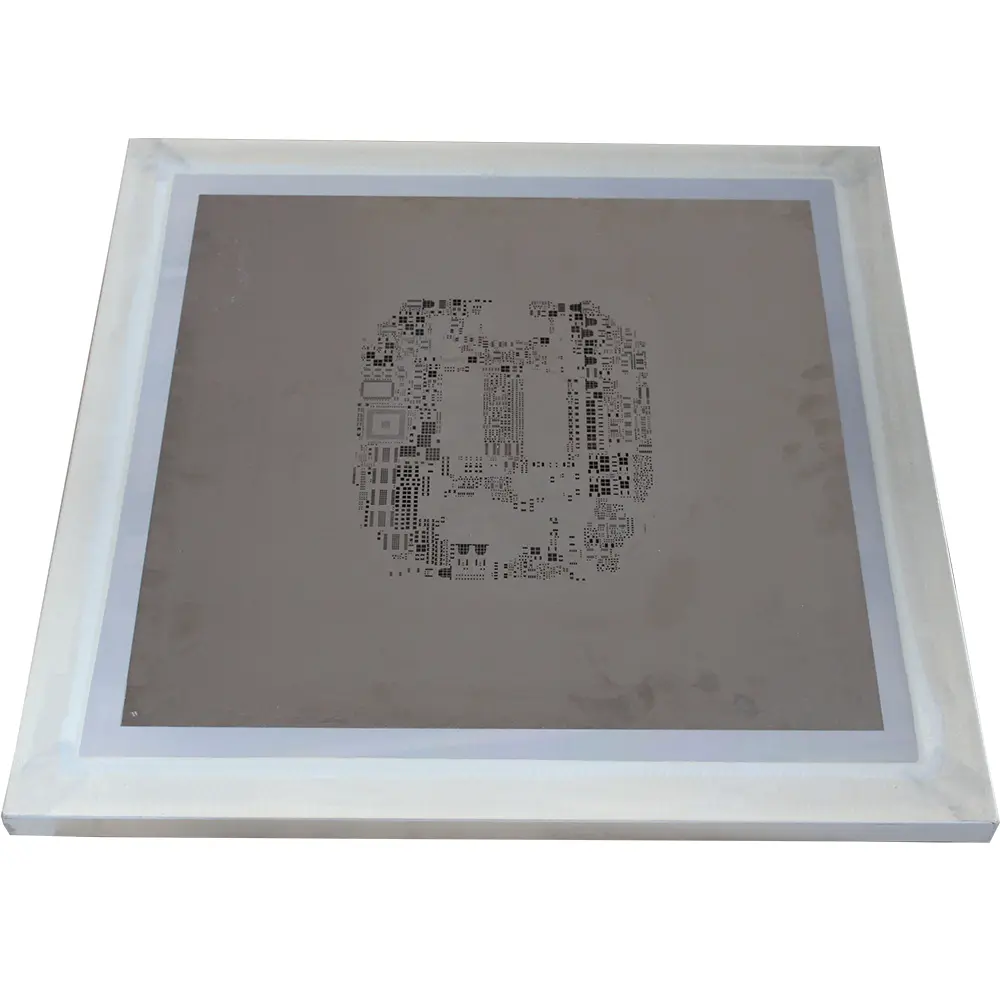

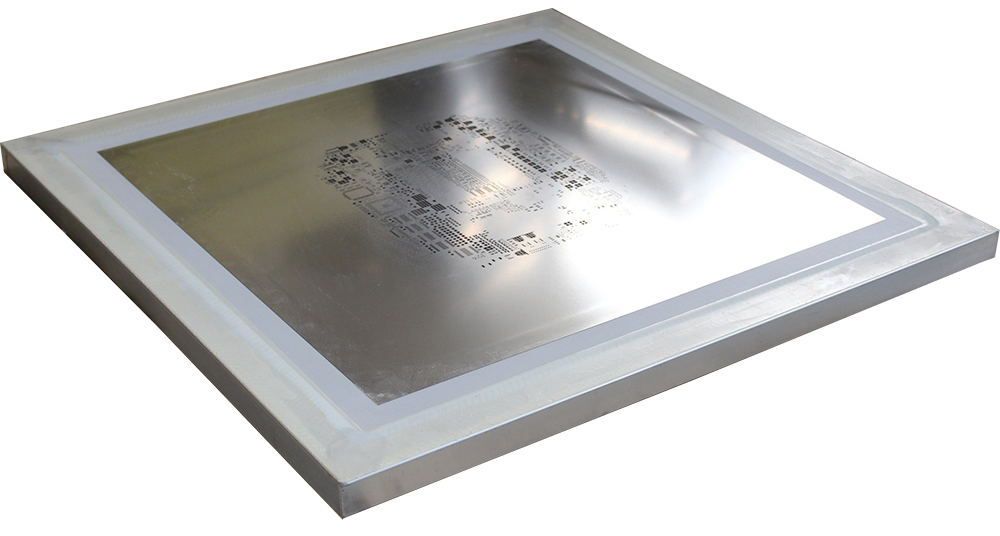

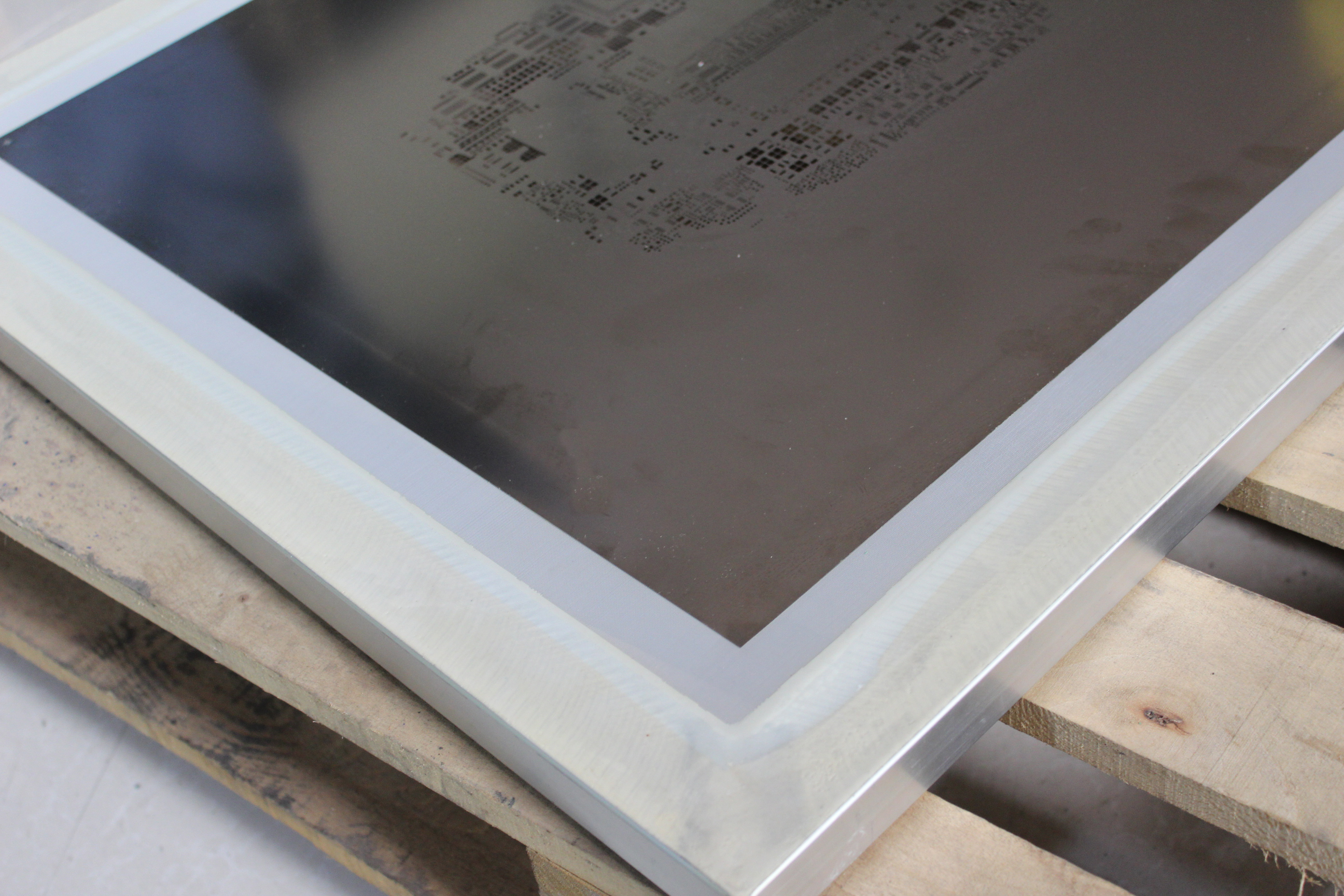

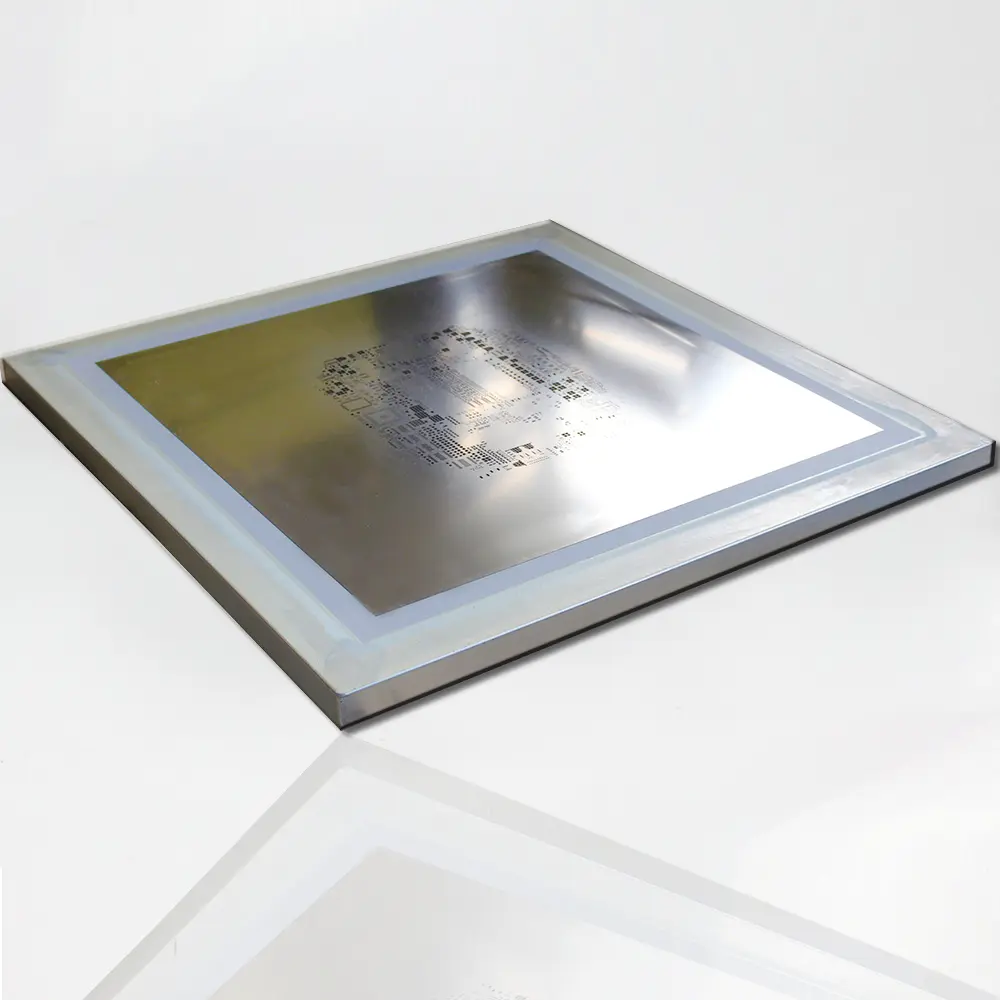

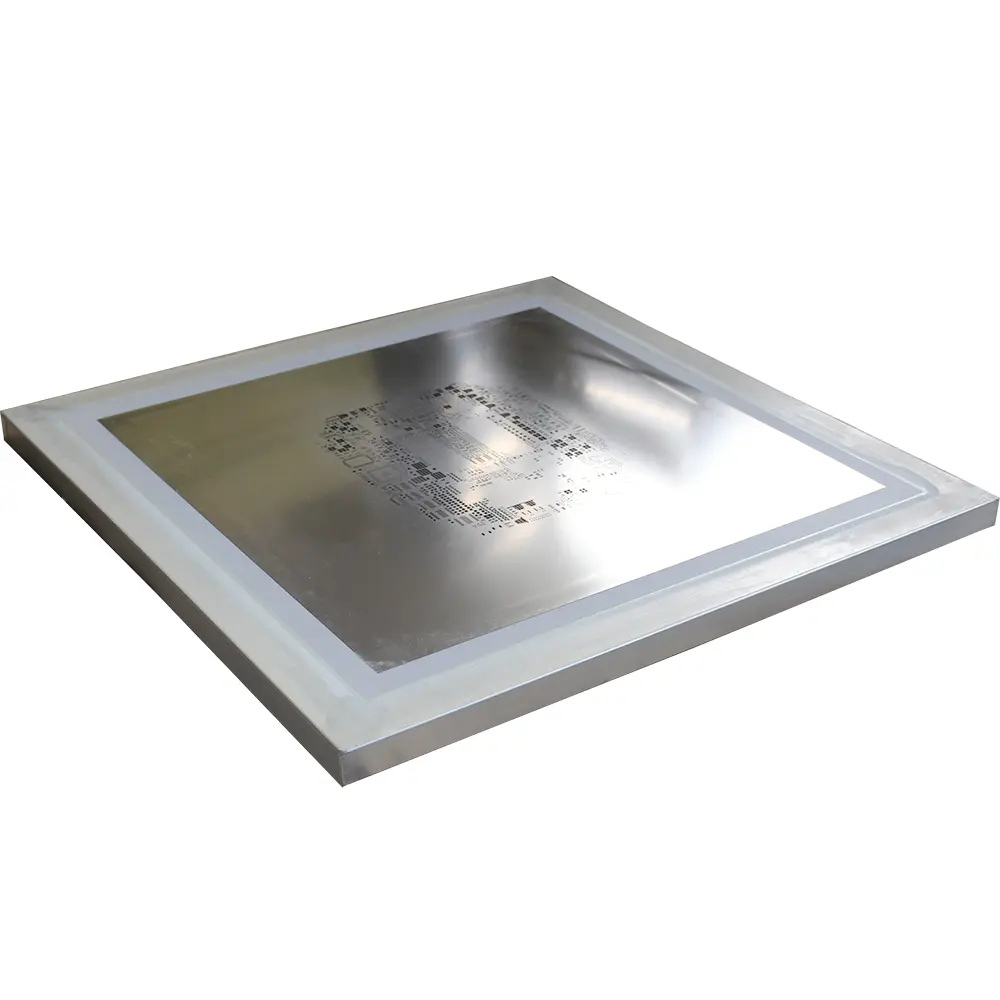

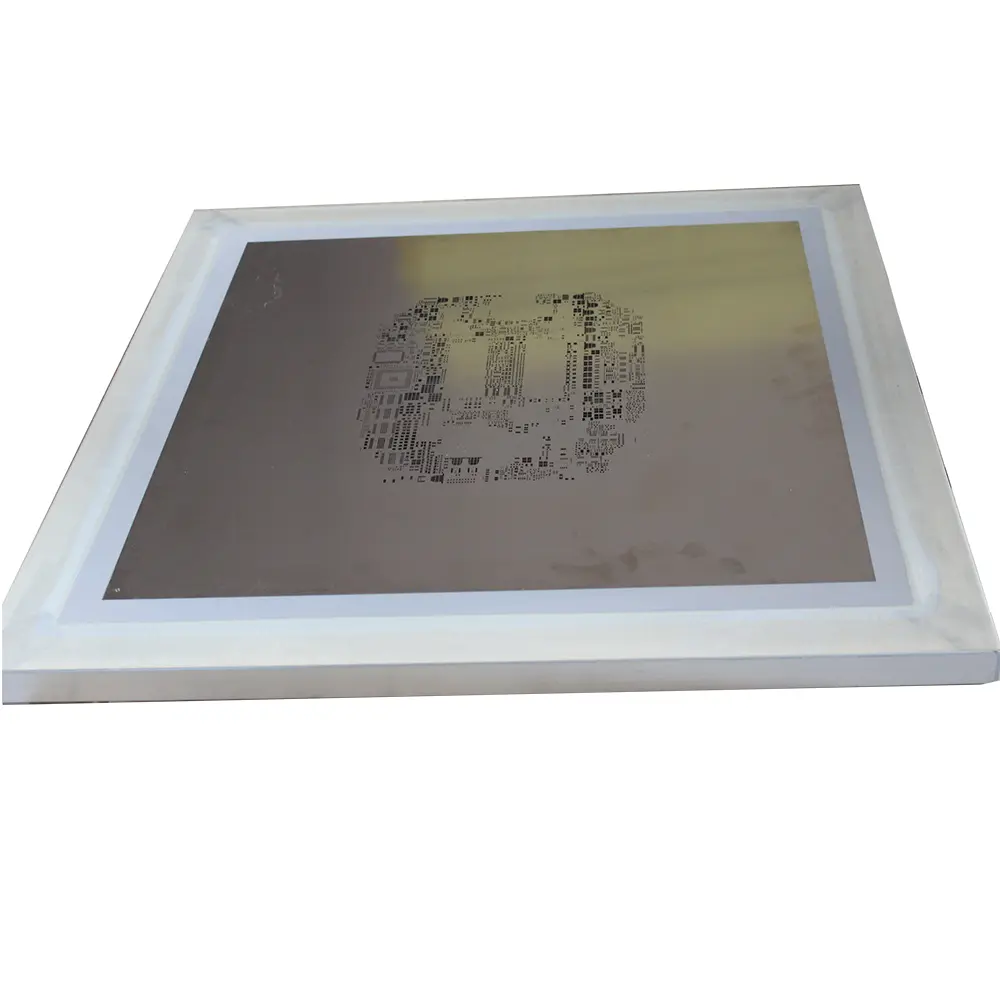

Surface Mount Technology (SMT) for electronic circuit.This is called surface mount or surface mount technique.A frame is a frame used to support a steel mesh (SMT formwork), made of metal, wood, or other materials.It is divided into fixed type and adjustable type.The most commonly used is the aluminum production of pneumatic mesh frame.Simply put, a thin piece of steel is cut with some holes corresponding to the solder joints of the PCB board for printing solder paste.

product specification
| Size | Aluminum profile |
| 736x550mm | 30x40x2.0mm |
| 650x550mm | 30x40x2.0mm |
| 600x550mm | 30x40x2.0mm |
| 15×20″ | 25x38x1.6mm |
| 23×23″ | 12.7×38.1×2.5mm |
| 25x38x1.6mm | |
| 38x38x2.0mm | |
| 29×29″ | 12.7×38.1×2.5mm |
| 38x38x2.0mm | |
| 40x40x2.0mm |
| Frame size | SS Sheet thickness | SS sheet size | |
736x550mm 650x550mm 600x550mm 15×20″ 23×23″ 29×29″ | 0.08mm | 651x420mm 470x420mm 520x420mm 10×15” 18×18” 18×18” 18×18” 24×24” 24×24” 24×24” | |
| 0.09mm | |||
| 0.10mm | |||
| 0.11mm | |||
0.12mm | |||
| 0.13mm | |||
| 0.15mm | |||
| 0.20mm | |||
| 0.25mm | |||
| 0.30m |
product details
The tension is generally between 43 and 45, ensuring the steel plate level
The four angles and the median error is less than 3N


product feature
1.Use AB epoxy adhesive to resist corrosion and solvent

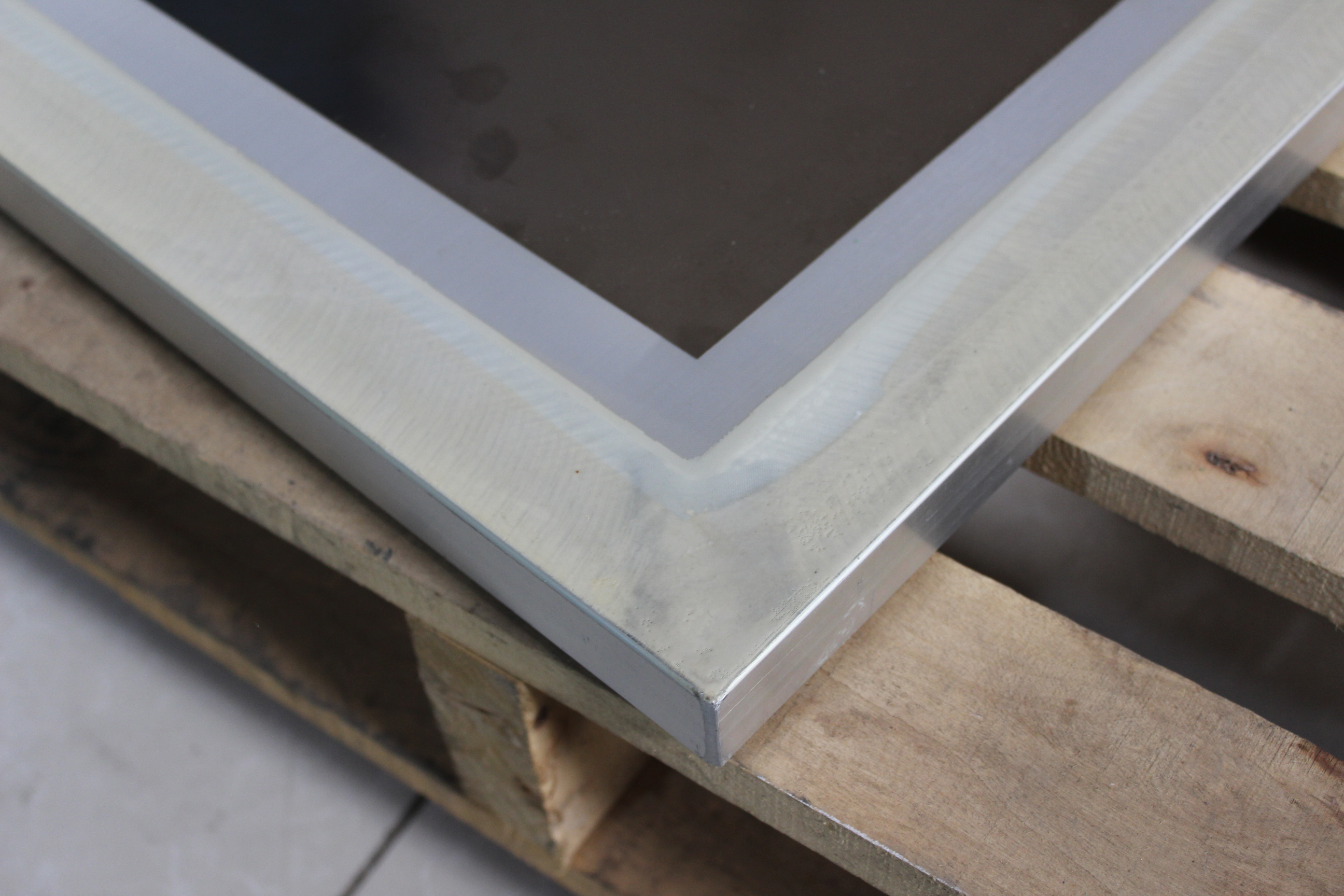

2.The use of aluminum frame, light and high strength
3.Precise data control in production, to ensure that each product can give customers the best experience in the application
4.Professional parameters of the mesh yarn, to ensure the elasticity of the product, tensile
