The Double Layer Aluminum Squeegee Handle is a professional-grade printing tool engineered for precision and durability. Combining a high-strength aluminum alloy frame with premium 100% polyurethane blades, this system is designed to provide consistent pressure and superior ink deposition across a wide variety of substrates, ensuring high-fidelity prints for industrial applications.
Available in multiple hardness levels and blade profiles, this versatile tool caters to diverse sectors including textile printing, PCB electronics, and solar cell manufacturing. Whether you require water-based ink resistance for t-shirts or extreme chemical resistance for high-precision electronic components, our double-layer handle system delivers the stability and longevity required for high-volume production environments.
Detailed Parameters
| Handle Material | Premium Aluminum Alloy | Blade Material | 100% Polyurethane |
|---|---|---|---|
| Handle Size | 96mm 1mm | Blade Profiles | Square, V-shape, Round |
| Hardness Range | 50A to 90A (Shore Durometer) | Standard Widths | 25mm - 100mm |
| Standard Thickness | 5mm - 10mm | Max Length | Up to 3660mm (Customizable) |
| Available Colors | Yellow, Blue, White, Red, Coffee, Green | Special Grades | AS, AM, AQ, AD Series |
Key Advantages
Chemical Resistance
Specialized polyurethane compounds (AQ/AD series) offer extreme resistance to solvents and aggressive chemicals used in PCB and solar cell printing.
Extended Service Life
High abrasion resistance reduces blade wear, minimizing downtime and reducing the frequency of replacement in high-speed production.
Precision Hardness
From soft (50A) to super hard (90A) and triple-layer combinations, ensuring the perfect ink shear for every substrate.
Versatile Application
Engineered for diverse uses: from textile t-shirt printing to high-tech electronic touch screens and ceramic glass.
Ergonomic Stability
The double-layer aluminum handle ensures a rigid structure, preventing deflection and ensuring uniform ink thickness.
Customizable Specs
Fully customizable lengths, widths, and colors to integrate seamlessly with your specific screen printing machinery.

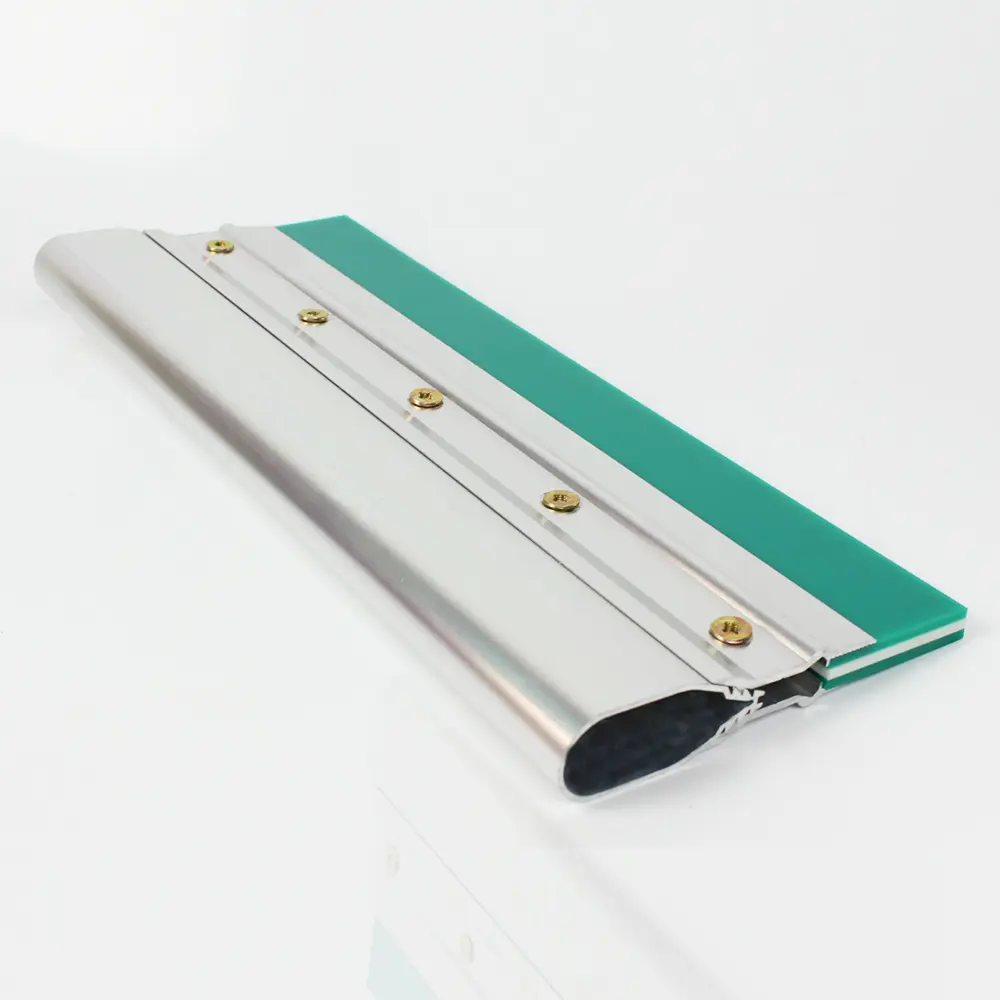

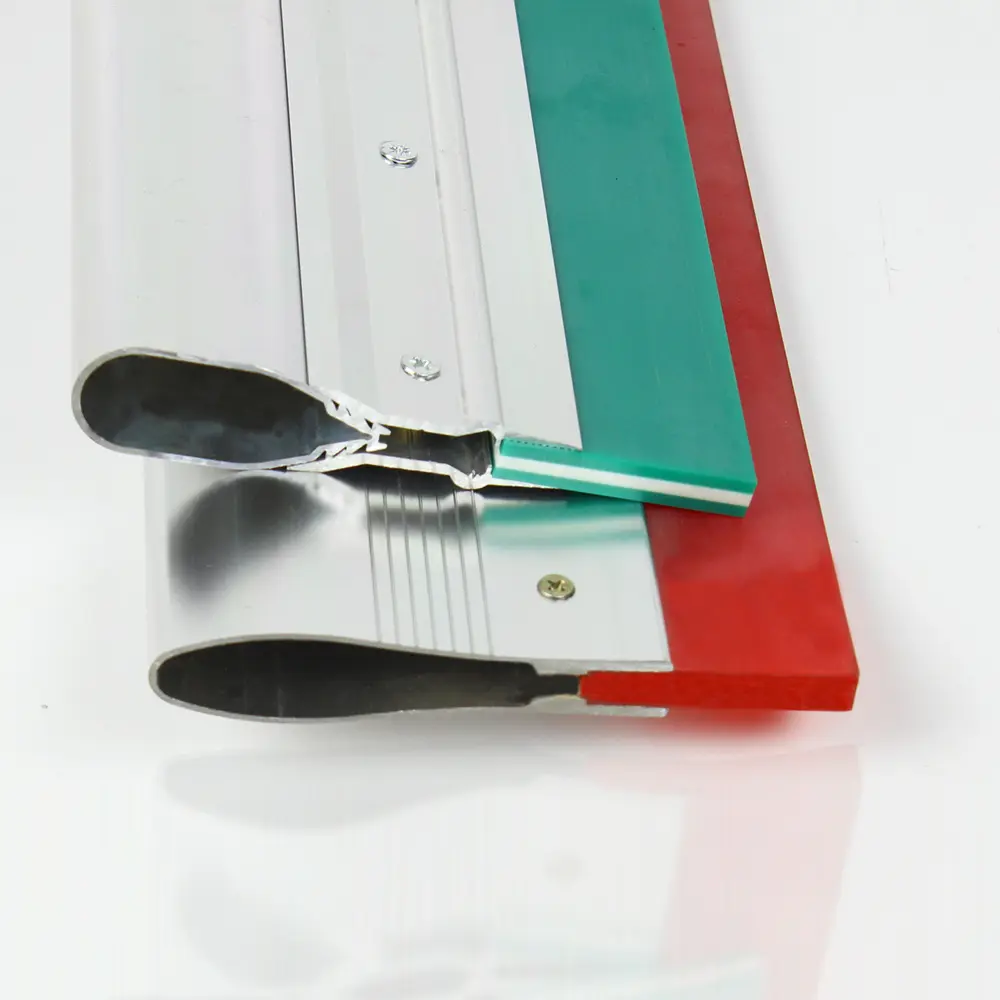

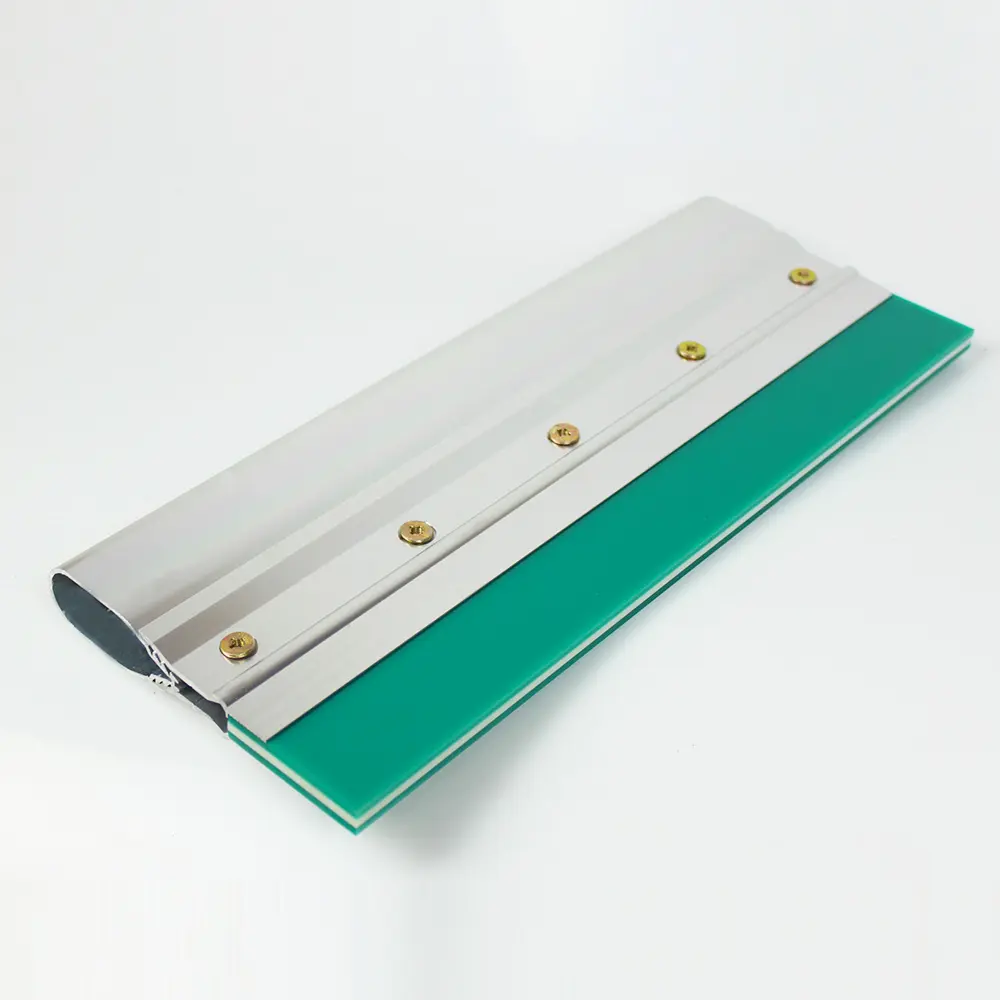

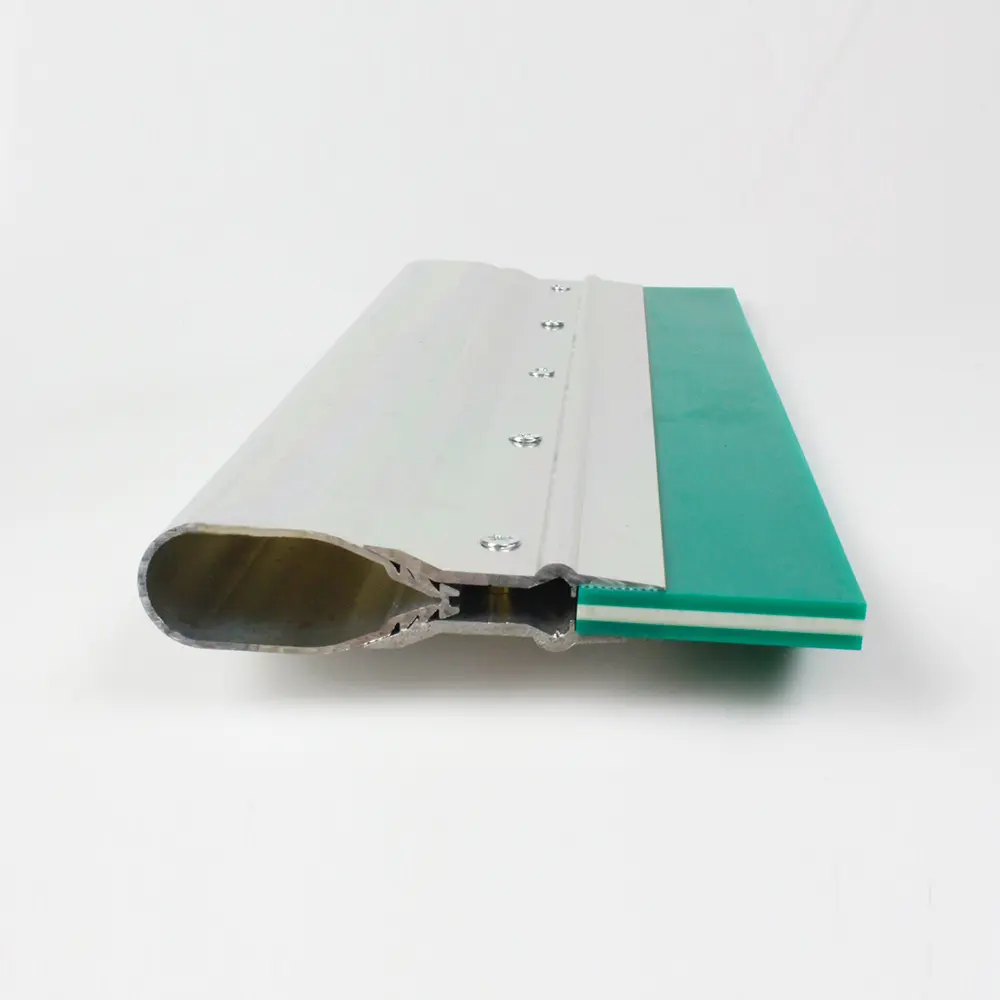

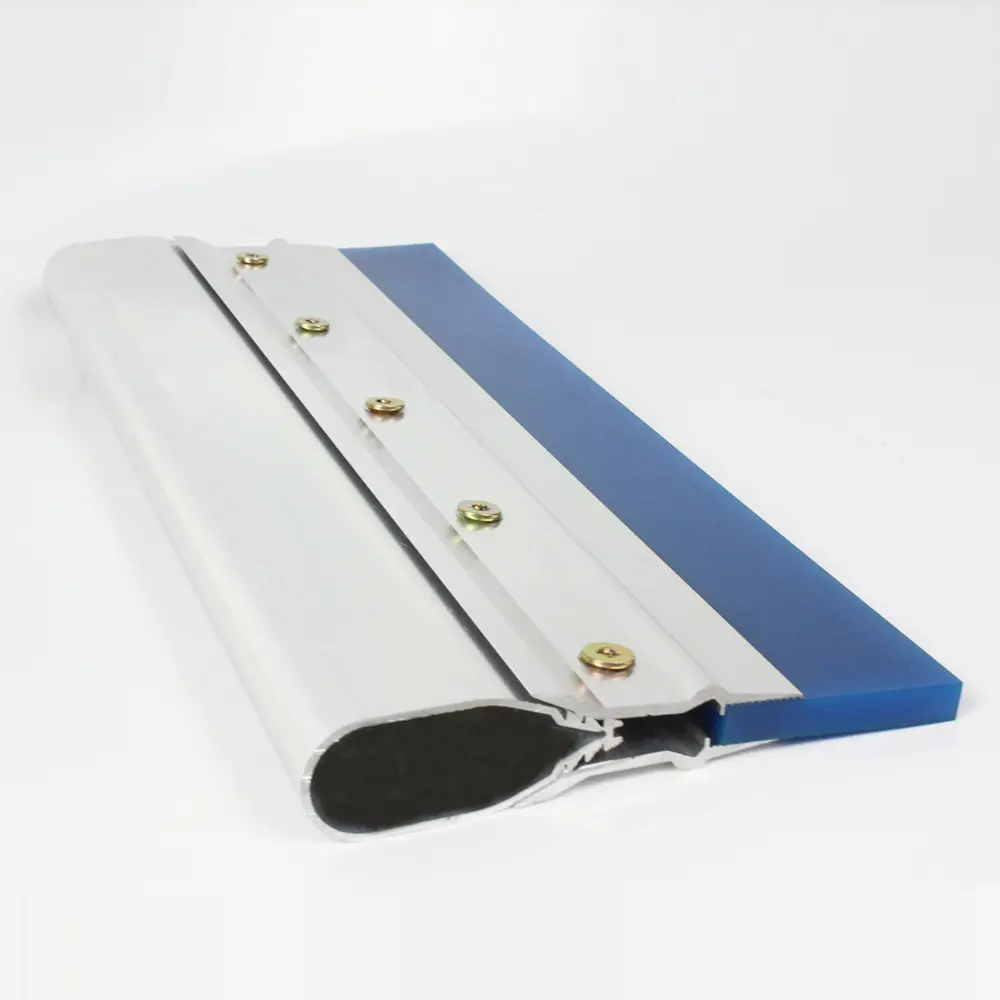

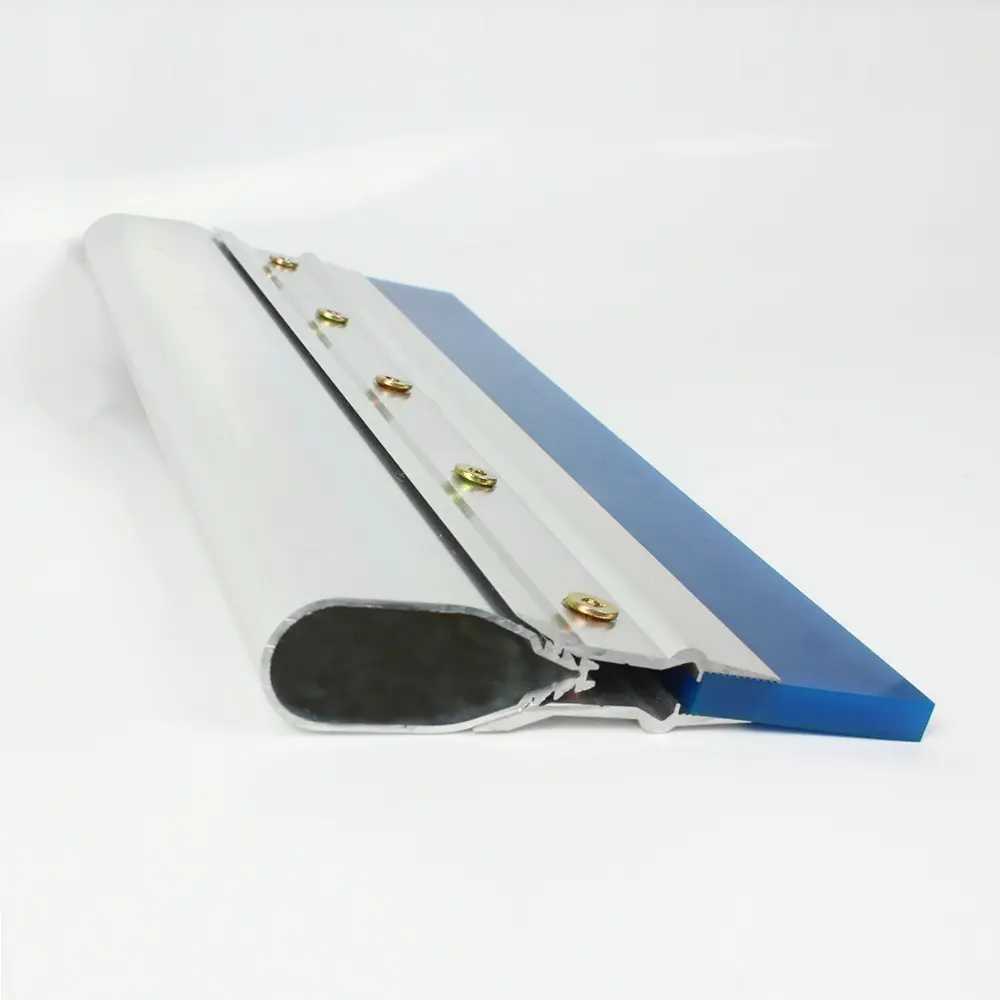

Product Gallery
Management Platforms
Material Selection
Choose from AS, AM, AQ, or AD polyurethane grades based on your specific ink chemistry and substrate needs.
Precision Profiling
Select Square, Round, or V-cut blade profiles to optimize ink flow and edge definition for your prints.
Hardness Control
Precise Shore A hardness ratings from 50 (soft) to 90 (super hard) to control ink deposition volume.
Layer Configuration
Standard single layer or advanced triple-layer (e.g., 65/90/65) for balanced flexibility and durability.
Custom Sizing
Tailored lengths up to 3660mm and custom widths from 25mm to 100mm for specialized equipment.
Quality Assurance
Rigorous testing for abrasion and solvent resistance to ensure industrial-grade reliability.
Investment Return Comparison
| Feature | Standard Rubber Squeegees | Double Layer Aluminum PU |
|---|---|---|
| Wear Resistance | Low - Frequent Replacement | High - Extended Lifespan |
| Pressure Uniformity | Moderate - Prone to Bending | Excellent - High Rigidity |
| Chemical Stability | Limited - Swells with Solvents | Superior - Solvent Resistant |
| Print Precision | Standard - Variable Thickness | High - Consistent Deposition |
| Long-term Cost | Higher due to replacements | Lower via durability |
Frequently Asked Questions
For PCB and CD printing, we recommend the AQ grade, which is manufactured with imported raw materials providing super abrasion resistance and high chemical stability.
Square blades are standard for most applications, while V-shape blades provide a sharper ink shear, often used for higher precision or specific ink types to reduce bleeding.
Yes, the AM grade is specifically compatible with most UV inks and offers high solvent and abrasion resistance, making it ideal for advertising, glass, and ceramics.
Triple hardness blades combine a hard core (90A) for structural support with softer outer layers (65A) for better contact with the substrate, balancing durability and print quality.
For T-shirt and textile printing using common water-based inks, the AS grade in medium hardness (65-75A) is typically the ideal choice for optimal ink flow.
Absolutely. We provide standard lengths such as 1000mm and 2000mm, and can manufacture custom lengths up to 3660mm (144") or as per your specific request.
