Short Description:

DTF Printer(direct to film)-An excellent product to print,it is easy to use.

  • Model Number: JM-JDTFA3-1
  • Max Printing Width: 310mm
  • Number of Print Head: 2
  • Printing Speed: 6Pass:3m2/h, 8Pass:1.5m2/h
  • Printing Accuracy: 360*2400dpi, 360*3600dpi, 720*2400dpi
  • Ink Type & Configuration: Textile Pigment Ink C/M/Y/K/W
  • Printing software: Maintop 6.1
  • Product Detail

    Product Tags

    详情1DTF printing technology's strongest selling point would be it ablity to work on almost every type of fabric without the need for pre-treatment, while being able to product sharper and more vibrant colours.

    ☆Big Color small size DTF printer have 2 sizes for 70cm &30cm. we can use XP600 head or 3200 head. 2 heads model or 1 head model optional for you. It can fit for different working environment.

    Product Description

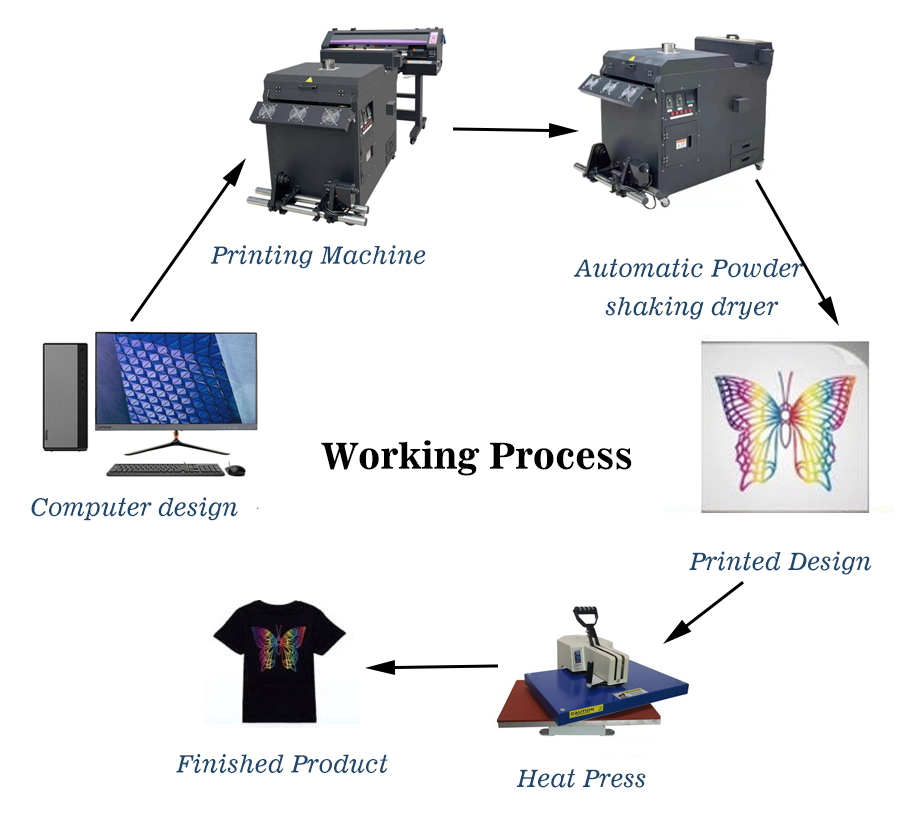

    1. Use software draw the pictures , and then use the printer to print the pattern on the PET machine.

    2.Sprinkle an appropriate amount of hot melt poweron the printed PET film and shake off the excess hot melt power.

    3. Put the PET film on the heat transfer machine and back for 5-7 minutes ,until the hot melt powder melts , take out the PET film.

    4. Lay the T shirt flat on the heat transfer amchine and stick the sidesprinkled with hot melt powder on the T shirt for pattern hot samping and the hot stamping takes 15-20 seconds.



    Product Specification

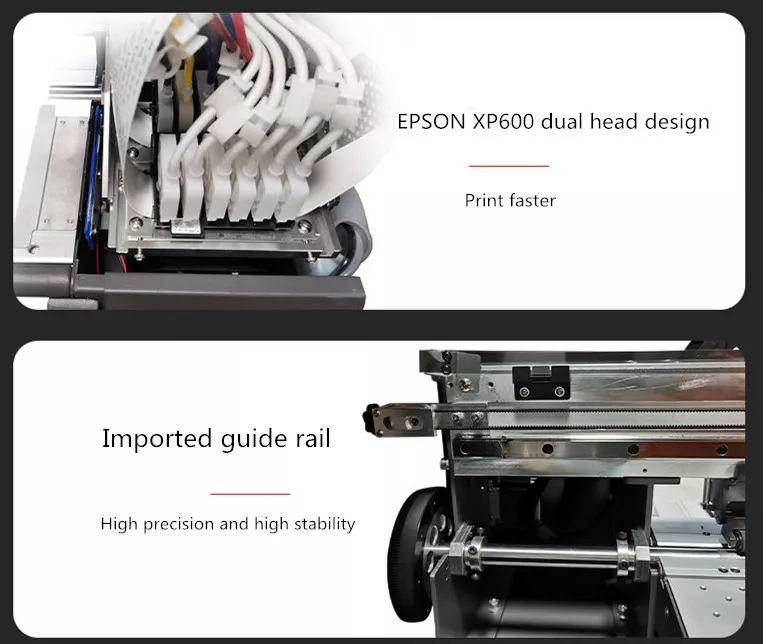

    Printhead EPSON WF-TX800/XP600 Print speed 6Pass:3square meter/hour  8Pass:1.5square meter/hour
    Number of print head 1 or 2 Printing accuracy 360*2400dpl  360*3600dpl  720*2400dpl
    (6Pass  8Pass)

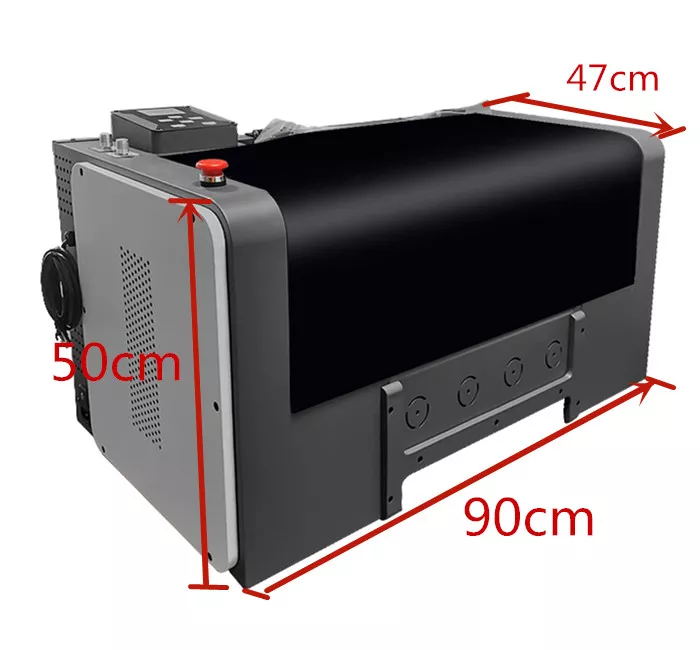

    Printer size 900*470*500mm Environmental conditions Temperature:20-28ºC
    Relative Humidity: 65%-75%
    Maximum printing width A3/310mm Ink type and configuration textile pigment ink  C/M/Y/K/W
    Weight 49kg Working power supply 220v/110v 50HZ/60HZ
    Outer packing size 960*510*540mm The Ironing temperature 160-170ºC   cold/hot to tear
    Priting software 6.1 Maitop/ photoprint Power printer:350w powder dryer:2400w
    Language Chinese/English Three heating sections pre-heater,printing bed heater,rear heater30-65ºC


    Powder Shaking Machine
    Max media A3 size 30cm width
    Heating size 40cm
    Voltage 220V/5A
    Power 3.4KW
    Media transmission NEW belt type
    Machine Dimension 85* 65 *60cm
    Packing size 95* 70* 70cm/45kgs
    Take up function Automatic inductive

    Product Feature

    1.Not only can use cloth, it can also transfer onto bag, shoes, notebook, fur and other kinds of fabric material.

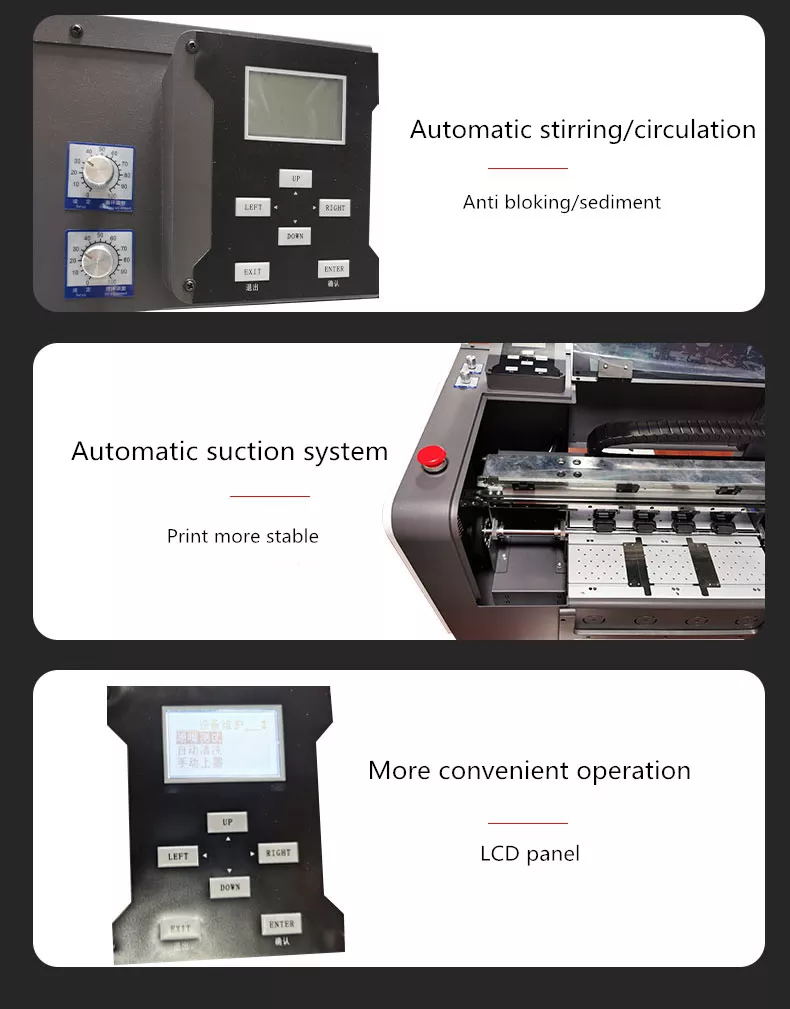

    2. Automatic white ink stirring system and circuit system, could extent the head working life..

    3. All-in-one machine body , printer+ shaker together, it can make sure the machine more stable move easily.

    4. We could support you all need spare parts and material. also the air filter. then make sure you get machine can work directly.

    5. If you didn't know how to import the goods, don't worry, we will help you arrange all shipping issues.

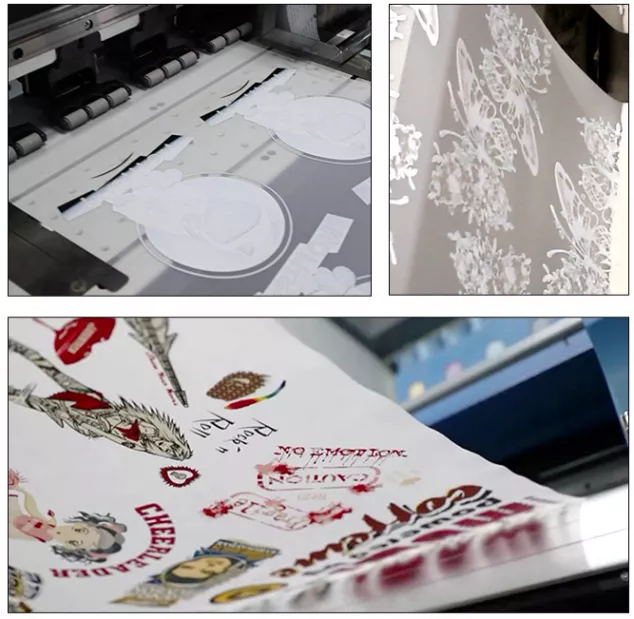

    Result Show

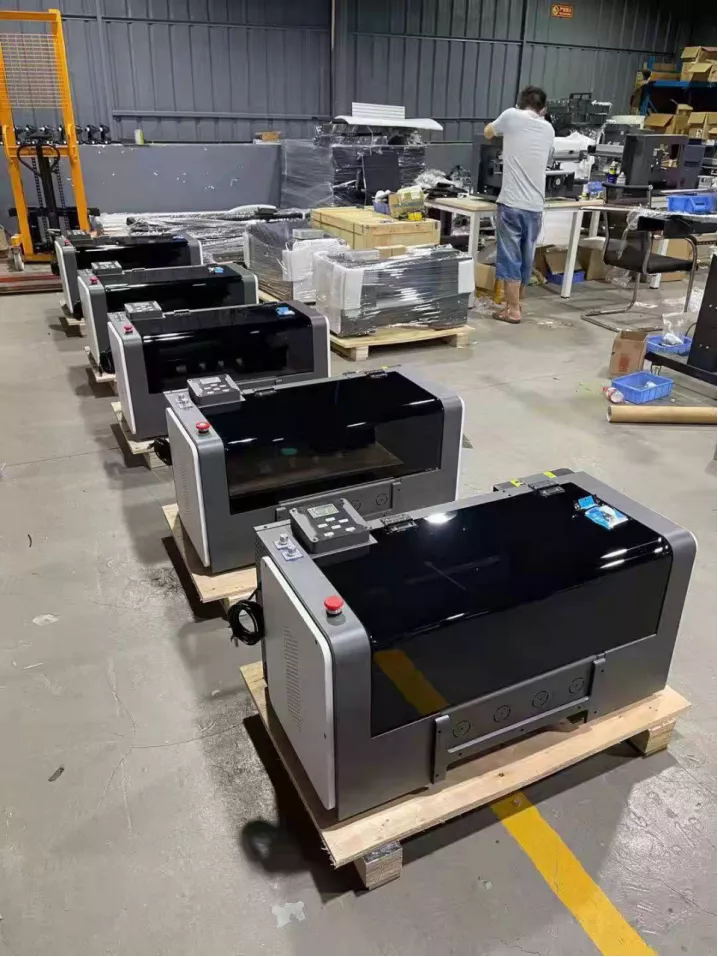

    Delivery and Packing
